Ruijie

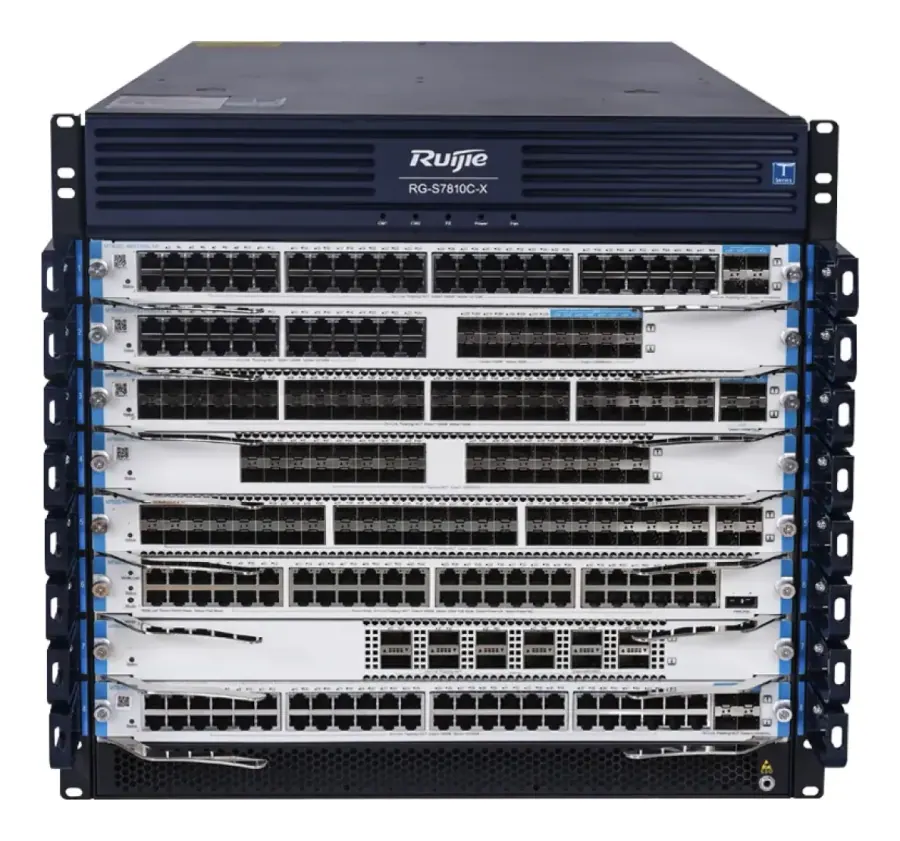

RG-S7810C-X 10 RU Modular Campus Core Switch
Model: RG-S7810C-X
Pricing for this product is provided on request.
Request a quote10 RU Modular Campus Core Switch. Can be deployed in data centers, metropolis area networks, campus networks, or integrated scenarios of data centers and campus networks. Two flash chips for storing boot software achieve hardware-level boot redundancy, avoiding switch boot failures due to a flash chip fault.
Specifications
| Module slot | 2 x supervisor module slots; 8 x line card slots; 4 x switch fabric module slots; 4 x power module slots; 2 x fan module slots |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| System packet forwarding rate | 14300 Mpps |
| System switching capacity | 19200 Gbps |
| Unit dimensions (W x D x H) | 442.5 mm x 560.0 mm x 442.0 mm (17.42 in. x 22.05 in. x 17.40 in.) |
| Unit weight | 43.55 kg (96.01 lbs, empty chassis with 2 fan modules) |
| Fixed service port | 2 x PoE out ports |
| Module management port | M7810C-CM-X: 1 x RJ45 console port; 1 x RJ45 MGMT port; M7810C-FE-X I/II：; 1 x RJ45 console port |
| PoE output power | Each PoE out port provides up to 1,440 W of power |
| Power module | RG-PA600I; RG-PA1600I; RG-PD600I |
| Rack height | 10 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 4,289,000 hours (about 489 years) |
| Model | RG-S7810C-X |
