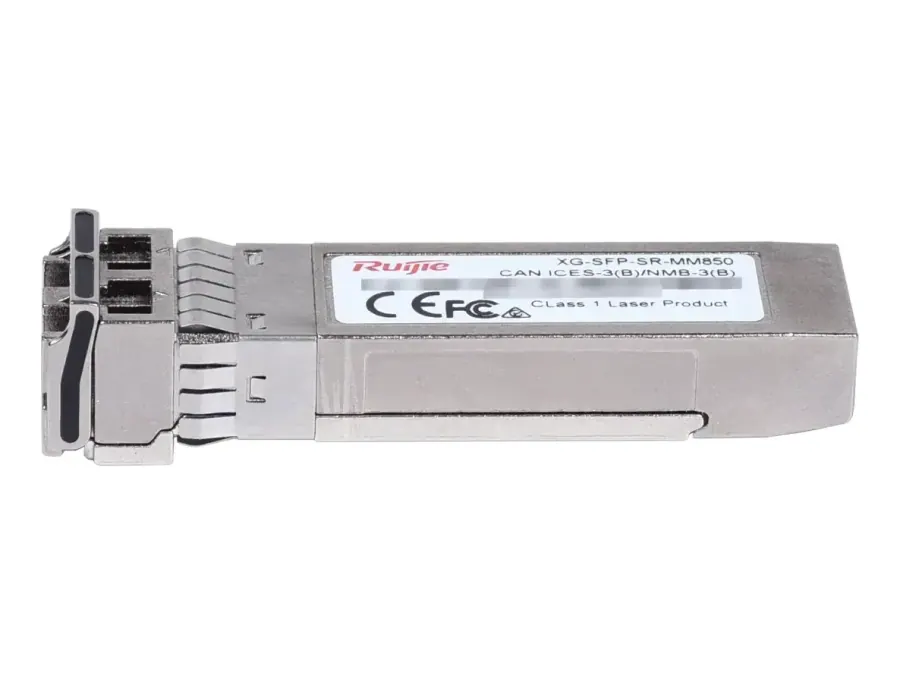

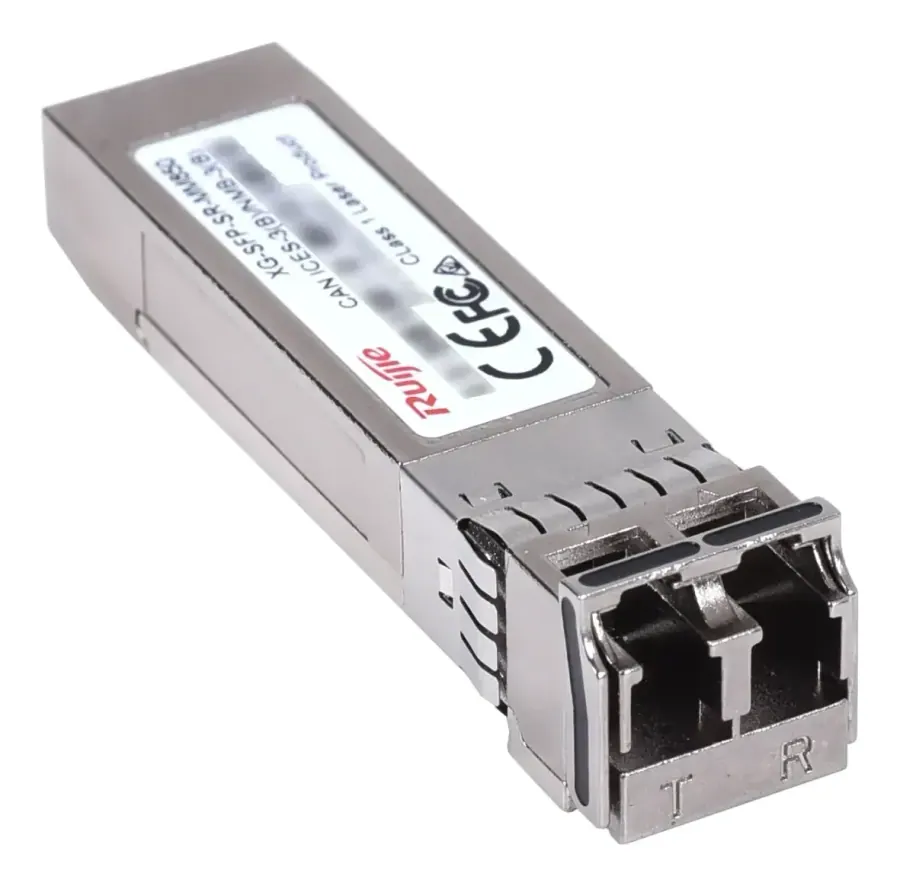

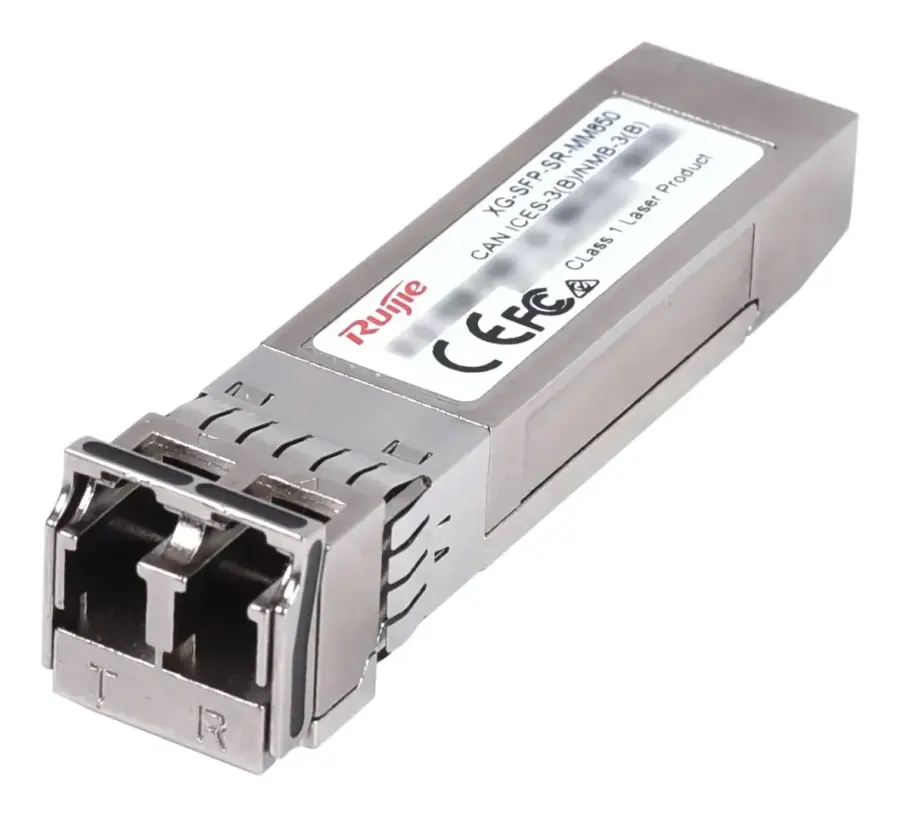

XG-SFP-SR-MM850 10GBASE-SR SFP+ 850-nm 300-m DOM Duplex LC MMF Optical Transceiver Module
Model: XG-SFP-SR-MM850
Pricing for this product is provided on request.
Request a quote10GBASE-SR SFP+ 850-nm 300-m DOM Duplex LC MMF Optical Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection. It adopts the SFP+ form factor and operates at a wavelength of 850 nm.
Specifications
| Data rate | 10.3125 Gbps |
| Form factor | SFP+ |
| Connector type | Duplex LC |
| Cable type | MMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | VCSEL |
| Receiver type | PIN |
| Reach | 300 m (984.25 ft., with OM3 optical cables); 400 m (1312.34 ft., with OM4 optical cables) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength | 850 nm |
| Max. transmit power (AVG) | –1 dBm |
| Min. transmit power (AVG) | –7.3 dBm |
| Min. extinction ratio | ≥ 3.0 dB |
| Receive sensitivity (OMA) | < –11.1 dBm |
| Overload optical power (AVG) | –1 dBm |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | XG-SFP-SR-MM850 |
