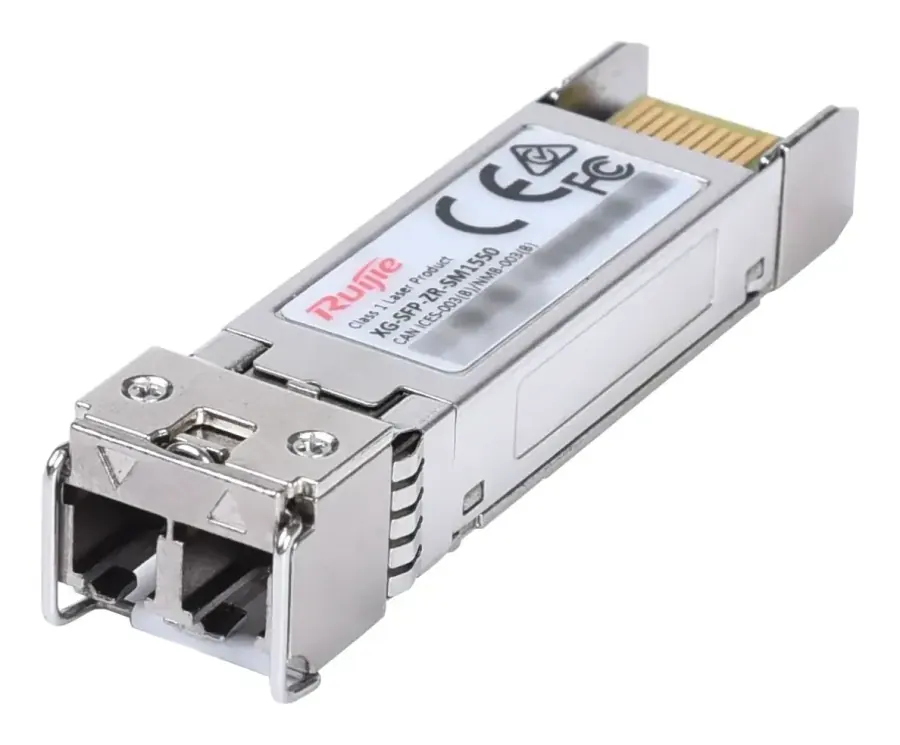

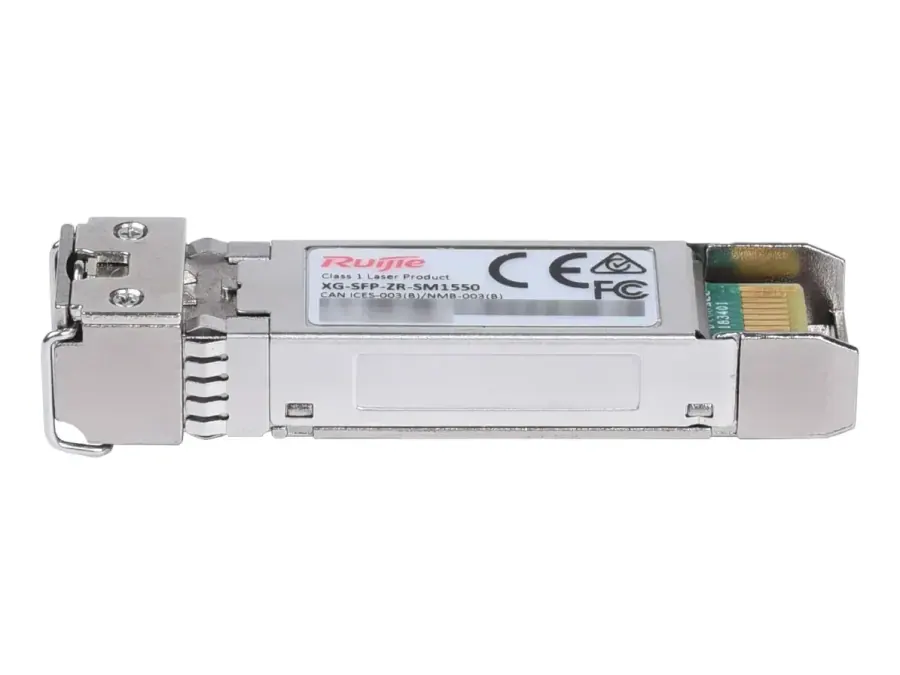

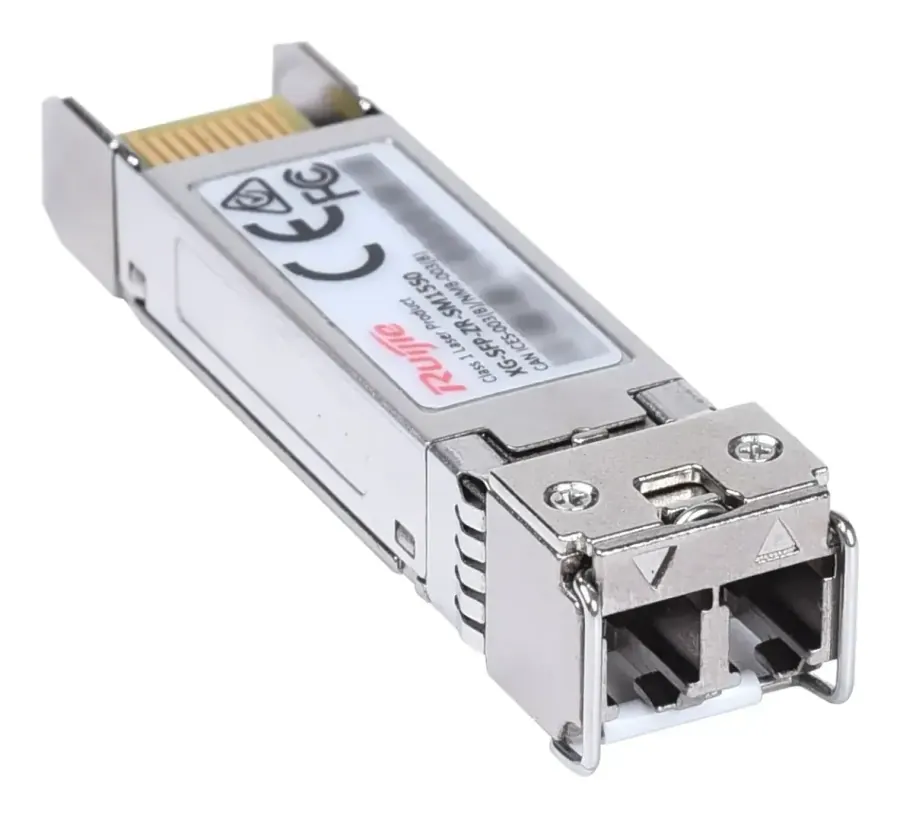

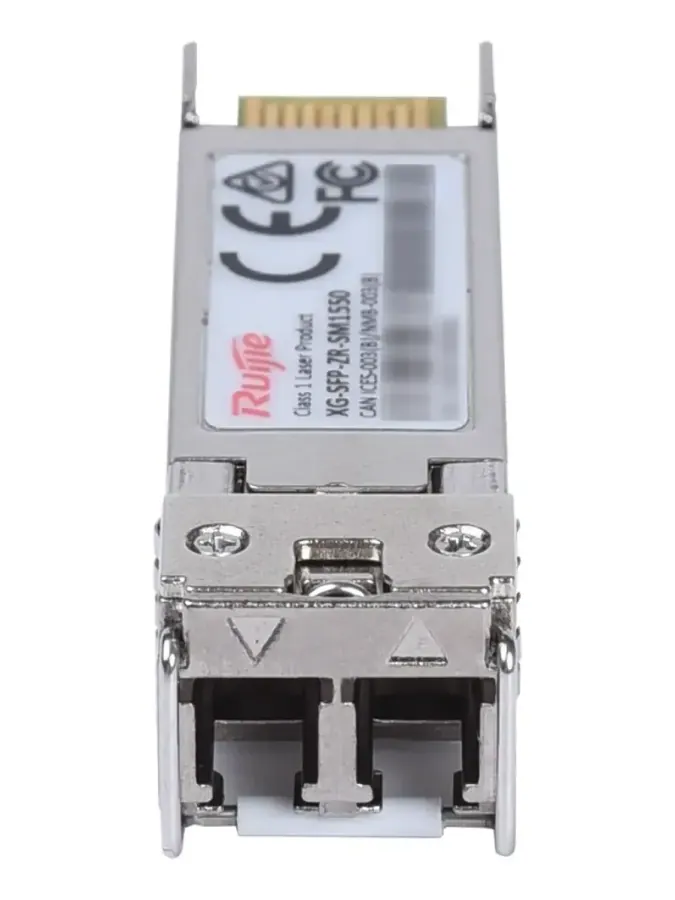

XG-SFP-ZR-SM1550 10GBASE-ZR SFP+ 1550-nm 80-km DOM Duplex LC SMF Optical Transceiver Module
Model: XG-SFP-ZR-SM1550
Pricing for this product is provided on request.
Request a quote10GBASE-ZR SFP+ 1550-nm 80-km DOM Duplex LC SMF Optical Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection. The XG-SFP-ZR-SM1550 is aligned to IEEE 10GBASE-ZR optical specifications and supports a link length of up to 80 kilometers over an SMF with an LC connector.
Specifications
| Data rate | 10.3125 Gbps |
| Form factor | SFP+ |
| Connector type | Duplex LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 80 km (262,467.19 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength | 1550 nm |
| Max. transmit power (AVG) | 4 dBm |
| Min. transmit power (AVG) | 0 dBm |
| Min. extinction ratio | ≥ 8.5 dB |
| Receive sensitivity (OMA) | < –24 dBm |
| Overload optical power (AVG) | –7 dBm |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | XG-SFP-ZR-SM1550 |
