Ruijie

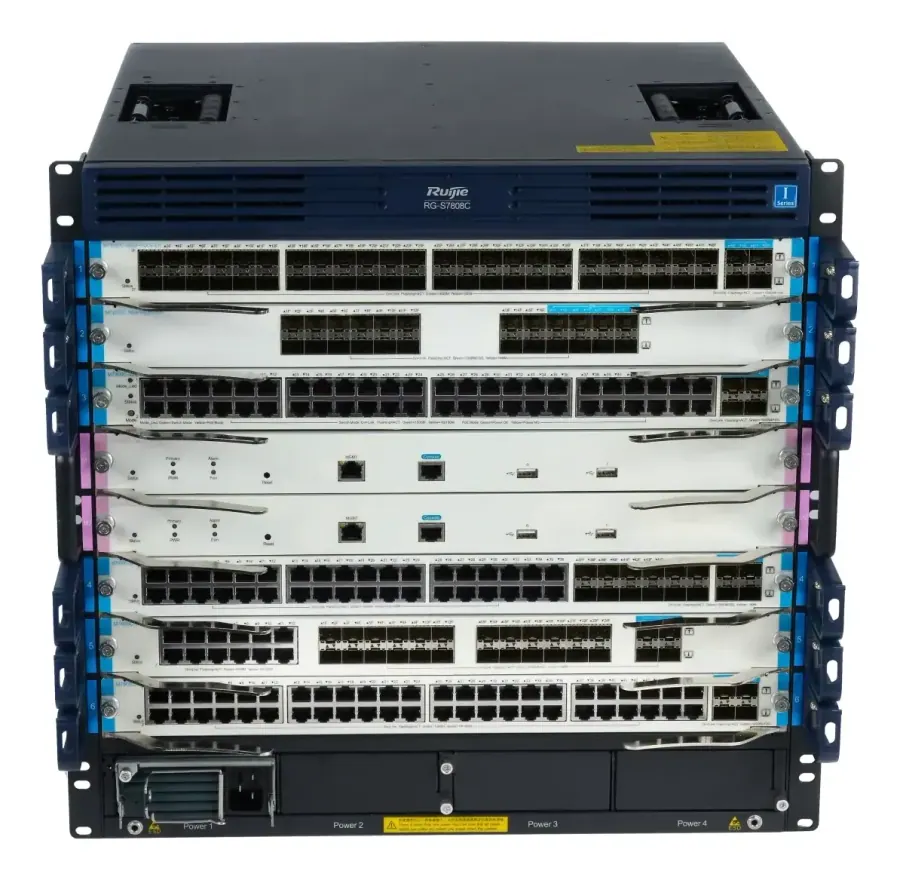

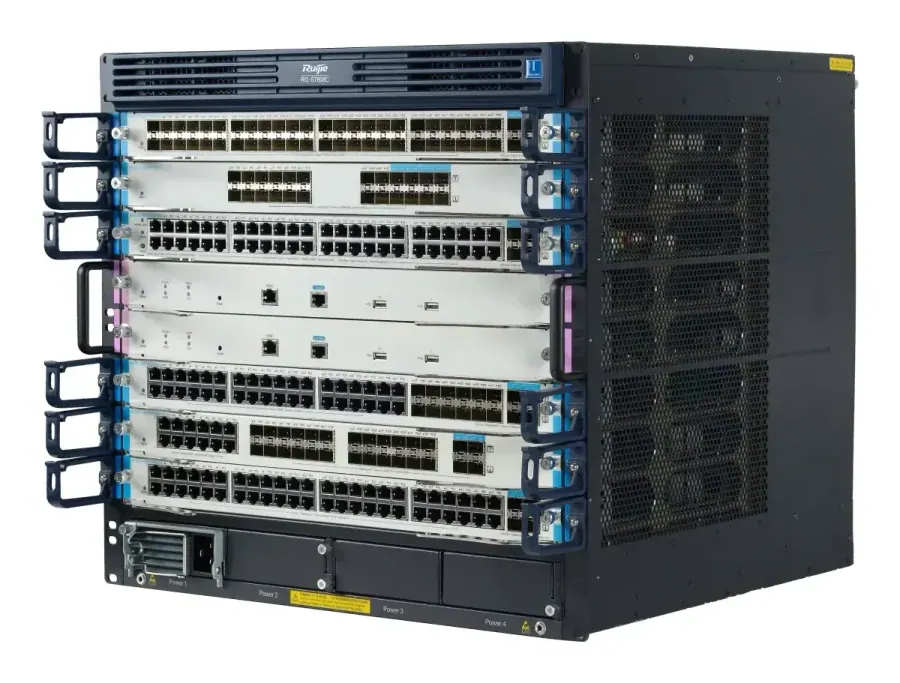

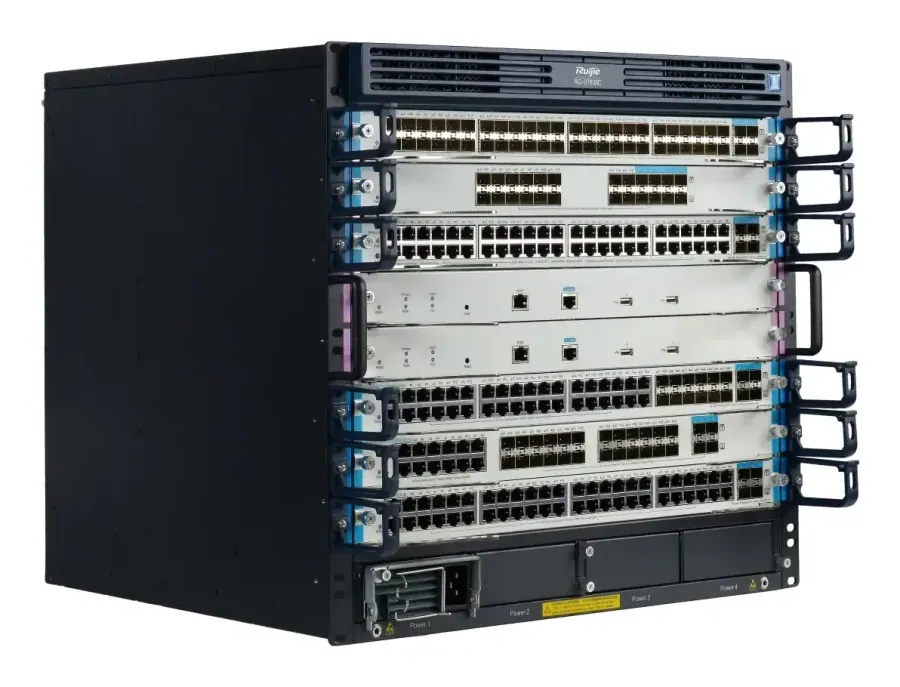

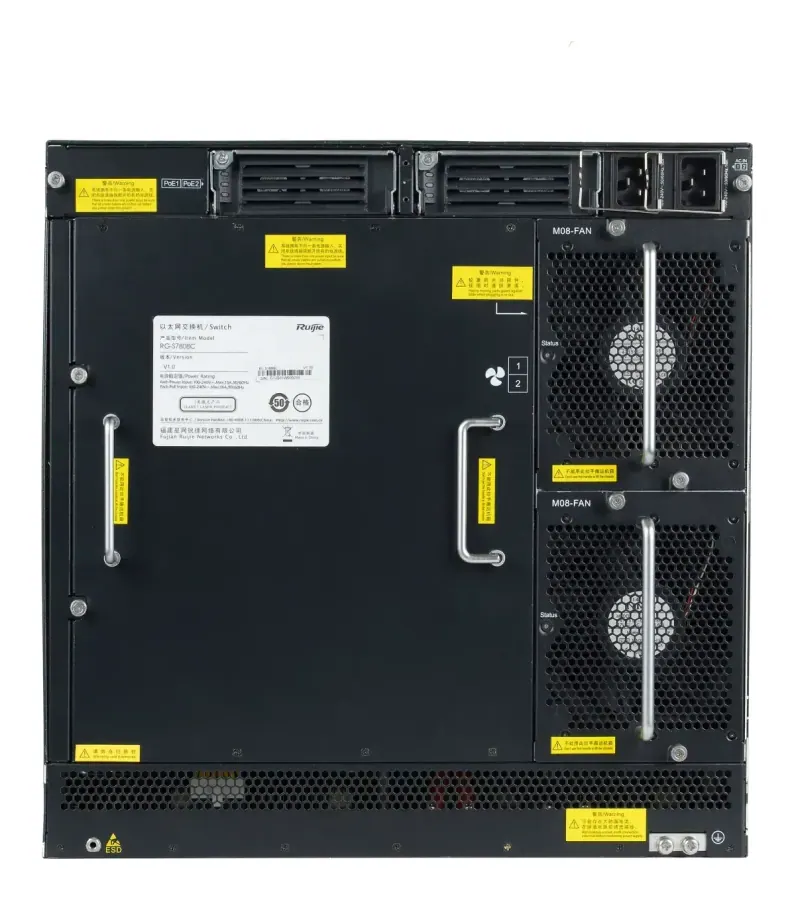

RG-S7808C 10 RU Modular Campus Core Switch
Model: RG-S7808C
Pricing for this product is provided on request.
Request a quote10 RU Modular Campus Core Switch. Can be deployed in data centers, metropolis area networks, campus networks, or integrated scenarios of data centers and campus networks. Two flash chips for storing boot software achieve hardware-level boot redundancy, avoiding switch boot failures due to a flash chip fault.
Specifications
| Module slot | 2 x supervisor module slots; 6 x line card slots; 4 x power module slots; 2 x fan module slots |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| System packet forwarding rate | 9000 Mpps |
| System switching capacity | 12000 Gbps |
| Unit dimensions (W x D x H) | 442.0 mm x 465.0 mm x 441.7 mm (17.40 in. x 18.31 in. x 17.39 in.) |
| Unit weight | 35.60 kg (78.48 lbs, empty chassis with 2 fan modules) |
| Fixed service port | 2 x PoE out ports |
| Module management port | M7808C-CM II: 1 x RJ45 console port; 1 x RJ45 MGMT port |
| PoE output power | Each PoE out port provides up to 1,440 W of power |
| Power module | RG-PA600I-F; RG-PA1600I-F |
| Rack height | 10 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 216,000 hours (about 24 years) |
| Model | RG-S7808C |
Need installation or a bulk quote? Talk to our team.
