Ruijie
RG-S7610-10SFMP2CQ 10-Port 1 RU SFMP 2.5GE Ultra-High-Density Fixed CWDM Core Switch
Model: RG-S7610-10SFMP2CQ
Pricing for this product is provided on request.
Request a quote10-Port 1 RU SFMP 2.5GE Ultra-High-Density Fixed CWDM Core Switch. Integration of multiplexers/demultiplexers into switches based on the Coarse Wavelength Division Multiplexing (CWDM) technology, effectively reducing core port occupancy and simplifying deployment, applied in Simplified Optical Ethernet (SOE) Solution.
Specifications

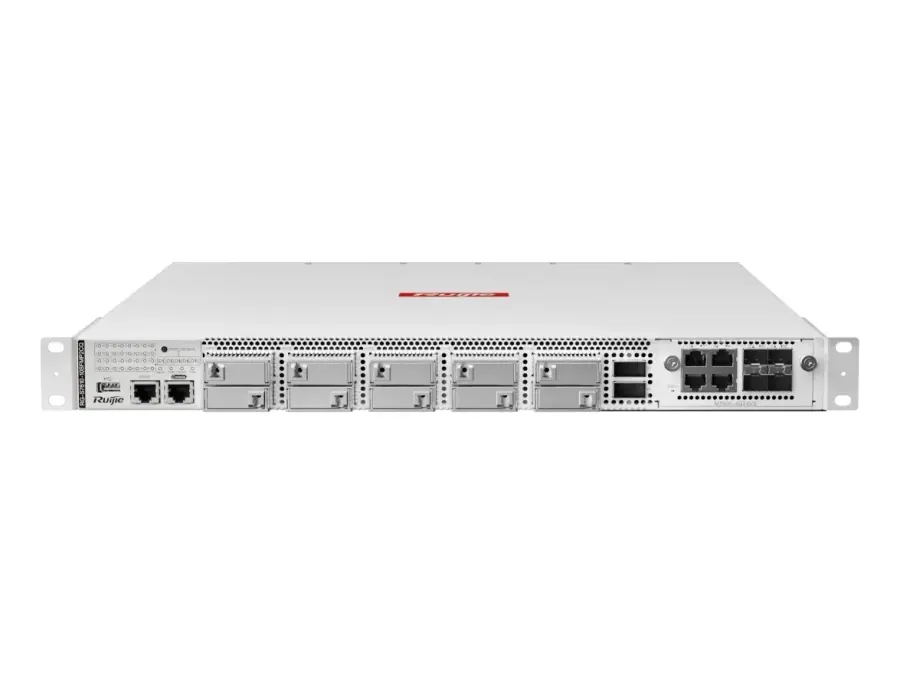

| Fixed service port | 10 x SFMP ports (160 x 1GE logical channels); 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| System switching capacity ^*2^ | 1.6 Tbps |
| Packet forwarding rate ^*1^ | 1190 Mpps |
| Power module | RG-PA550I II-F |
| Unit dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm (17.40 in. X 16.54 in. X 1.72 in.) (excluding fan modules and power handles); 482.6 mm x 420 mm x 43.6 mm (19.00 in. X 16.54 in. X 1.72 in.) (including mounting brackets, and excluding fan modules and power handles) |
| Unit weight | 7.0 kg (15.43 lbs) (fan modules included during delivery, excluding power modules, expansion modules, and packaging materials) |
| Rack height | 1 RU |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 302000 hours (about 34 years) |
| Model | RG-S7610-10SFMP2CQ |
