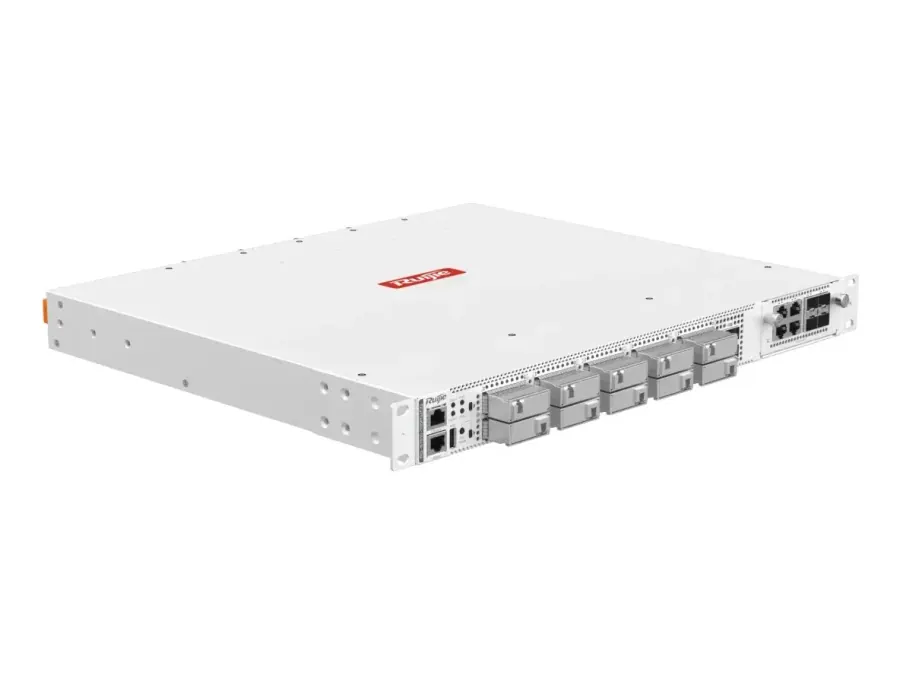

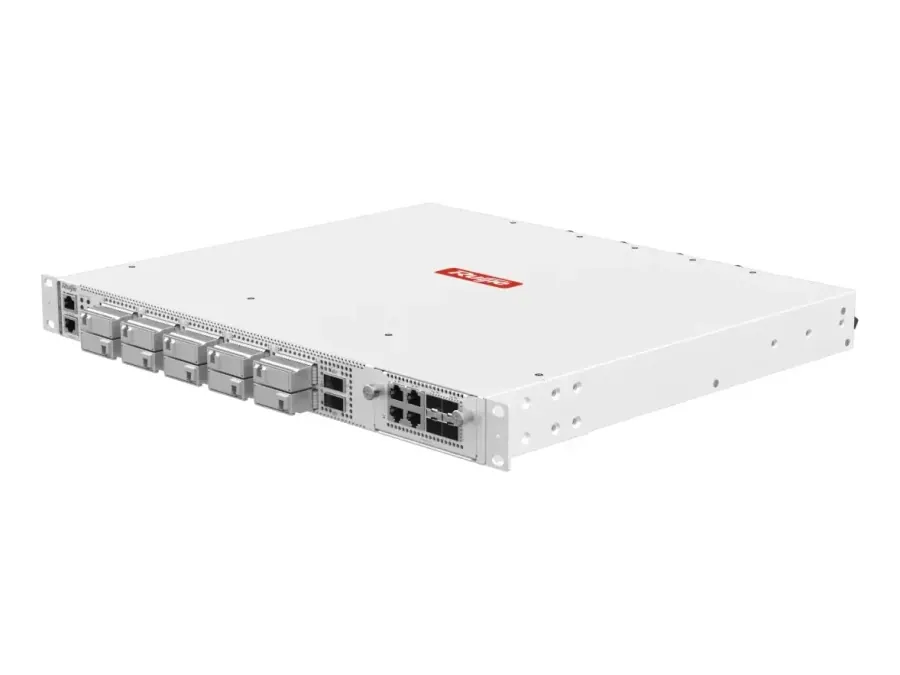

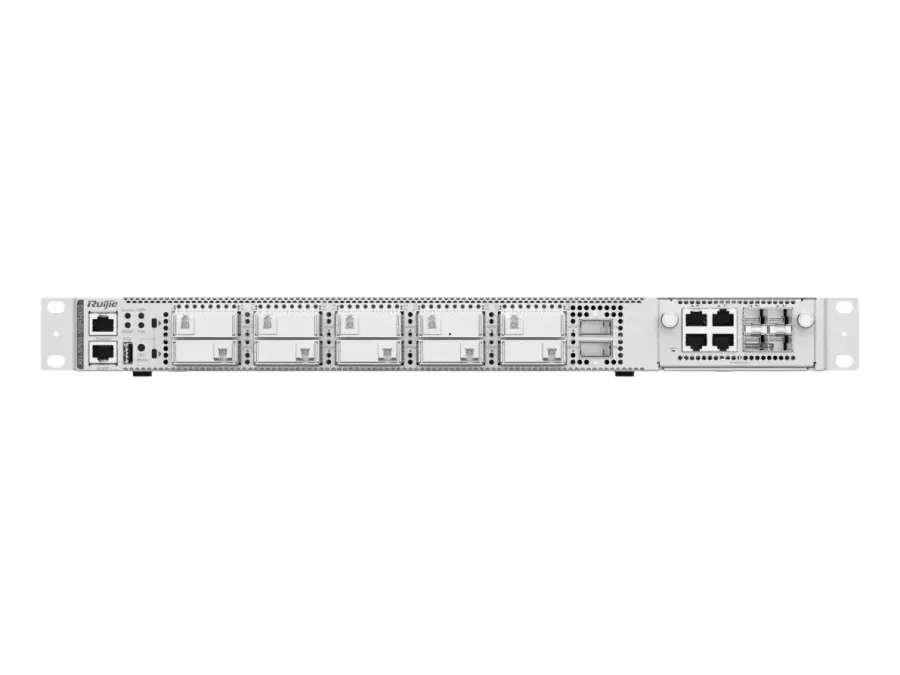

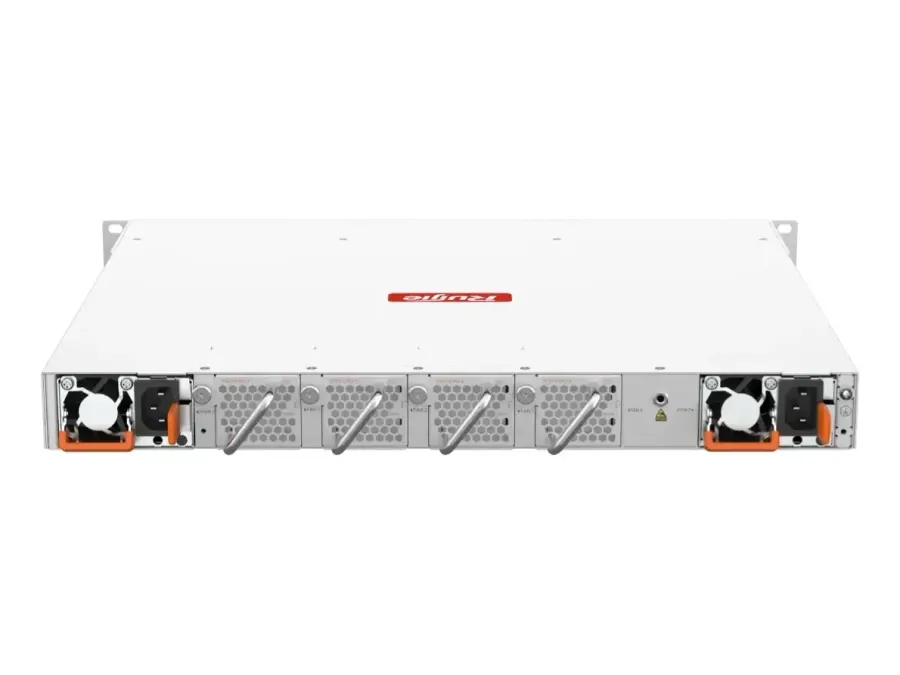

RG-S7610-10SFG2CQ 1 U Ultra High-Density CWDM Fixed Core Switch
Model: RG-S7610-10SFG2CQ
Pricing for this product is provided on request.
Request a quote1 U Ultra High-Density CWDM Fixed Core Switch. Designed for all-optical scenarios, this series adopts CWDM technology and integrates a combiner, reducing core port usage and simplifying deployment. Ten SFG hyper-converged ports are provided with each supporting up to eight SFP channels.
Specifications
| Fixed service port | 10 x SFG ports (80 x 1GE logical channels); 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| System switching capacity ^*2^ | 960 Gbps |
| Packet forwarding rate ^*1^ | 714 Mpps |
| Power module | RG-PA550I II-F |
| Unit dimensions (W x D x H) | 442 mm x 388 mm x 44 mm (17.40 in. x 15.28 in. x 1.73 in.) |
| Unit weight | 6.88 kg (15.17 lbs, with 4 fan modules) |
| Rack height | 1 RU |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 683,104.8 hours (about 78 years) |
| Model | RG-S7610-10SFG2CQ |
