Ruijie
RG-S6980-128DC 128-Port 200GE Data Center Fixed Core Switch
Model: RG-S6980-128DC
Pricing for this product is provided on request.

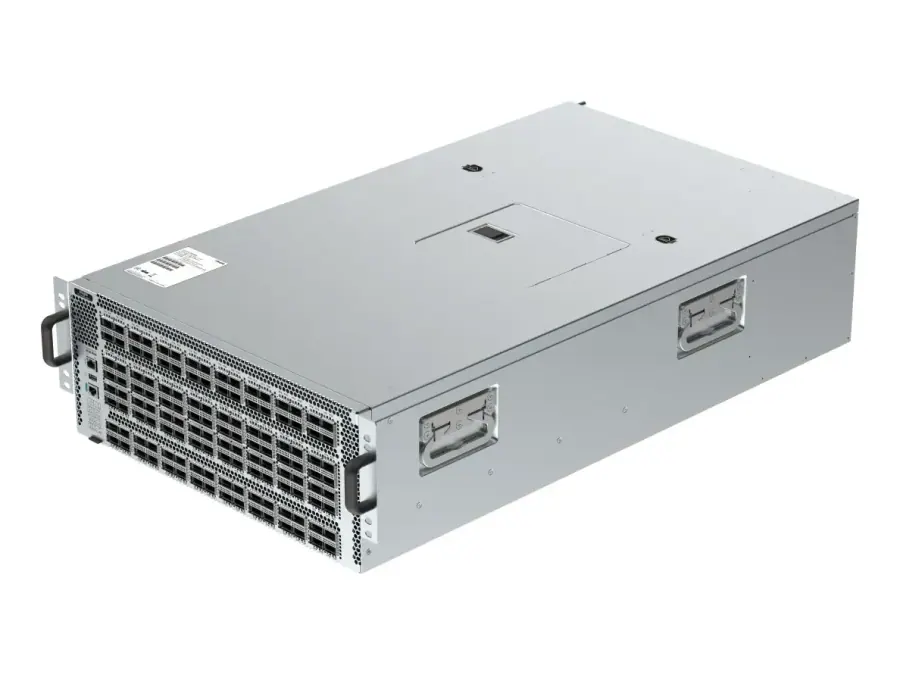

Request a quote128-Port 200GE Data Center Fixed Core Switch. The RG-S6980-128DC is a next-generation, high-performance, and high-density fixed switch launched by Ruijie Networks for evolving trends of AIGC, big data, high-performance computing, distributed storage. The high-speed and high-density core switch provides 128 x 200GE QSFP56 ports housed in a 4-RU enclosure, delivering scalable, high-performance, and high-bandwidth services for large-scale DCI networks.
Specifications

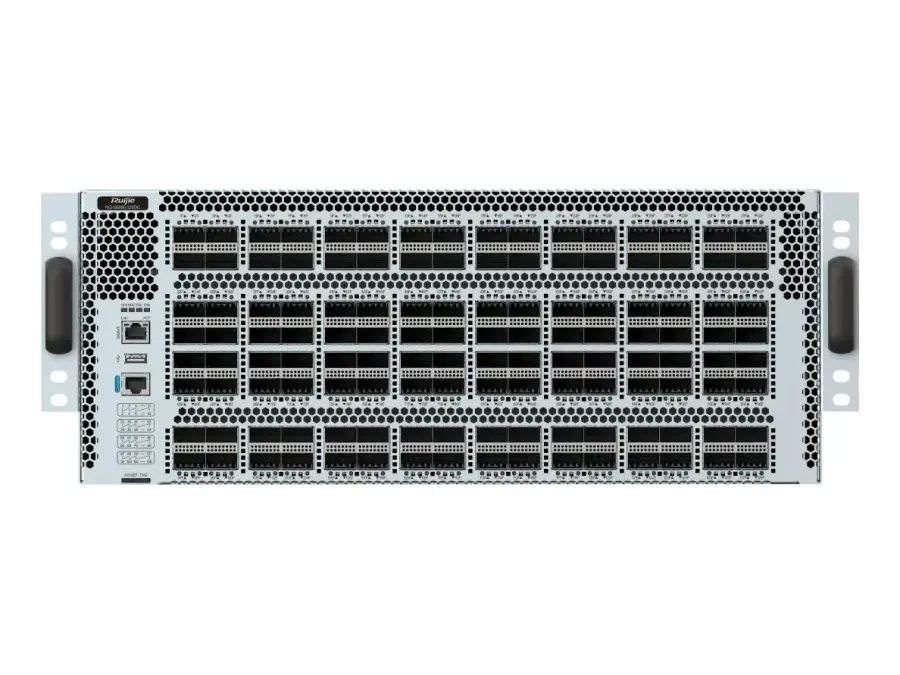

| Service Port | 128 x 100GE/200GE QSFP56 ports |
| Management Port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Switching Capacity | 51.2 Tbps |
| Packet Forwarding Rate | 10300 Mpps |
| Power Consumption | Maximum power consumption: 2550 W; Typical power consumption: 1800 W; Static power consumption: 250 W |
| Dimensions (W x D x H) | 442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in.) |

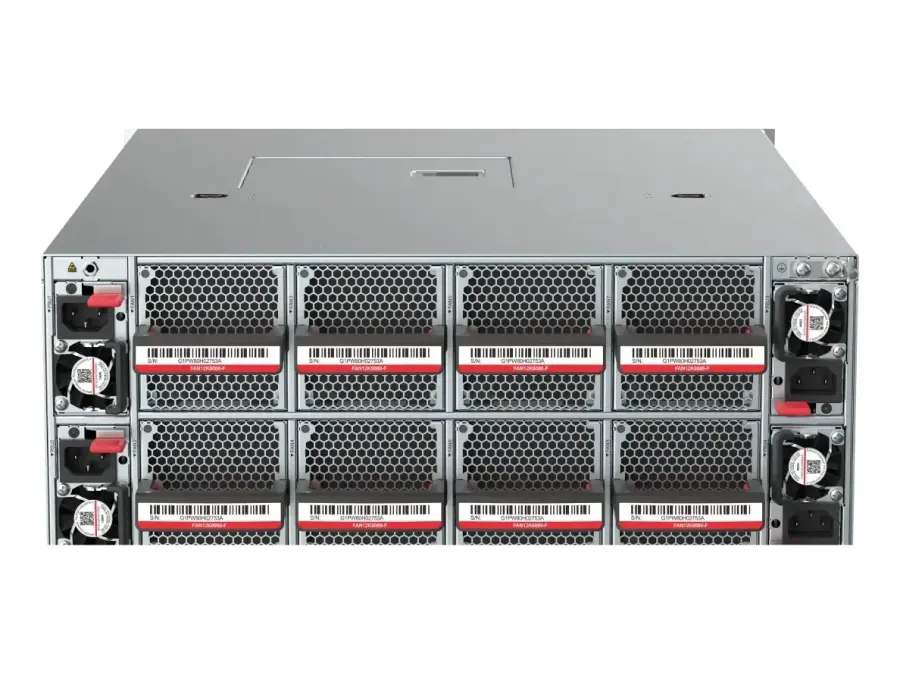

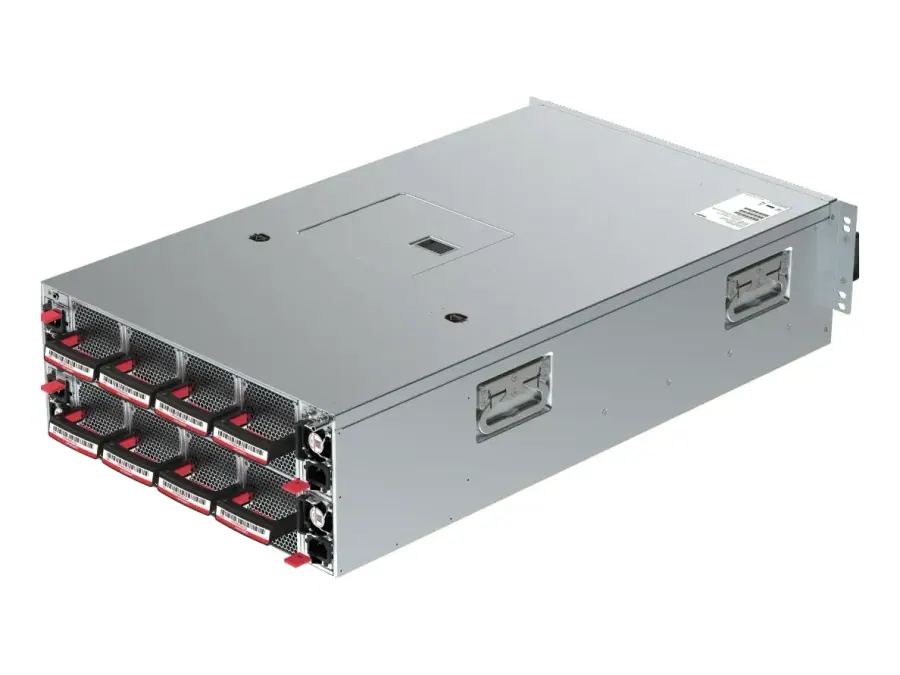

| Weight | 39.65 kg (87.41 lbs.) (A chassis installed with four power modules and eight fan modules) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Model | RG-S6980-128DC |
