Ruijie

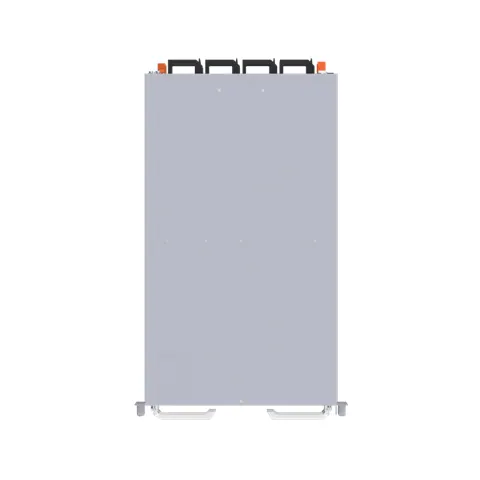

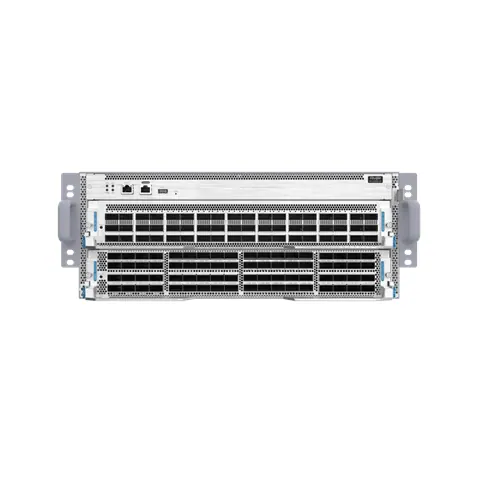

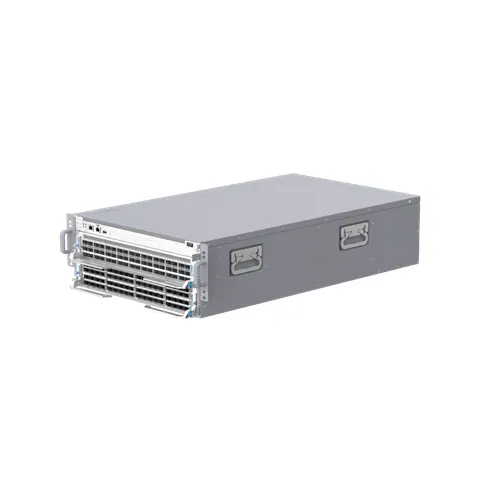

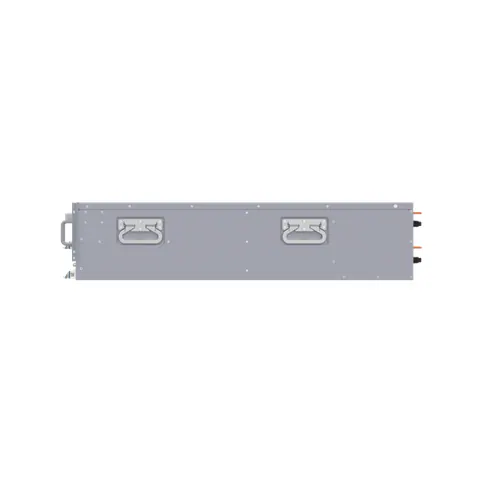

RG-S6930-2C Next-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards
Model: RG-S6930-2C
Pricing for this product is provided on request.
Request a quoteNext-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards. Centralized modular core switch with large buffer and high-density ports in the 4-RU space, which is recommended for the data center gateway zone, MAN, and DCI. MACsec provides hardware-level data encryption.
Specifications
| Switching capacity | 28.8 Tbps |
| Packet forwarding rate | 5400 Mpps |
| Module slot | 2 x expansion module slots; 4 x power module slots; 8 x fan module slots |
| Dimensions (W x D x H) | 442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in., 4 RU) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 2934 W; Typical power consumption: 1338 W; Static power consumption: 600 W |
| Unit weight | 23.4 kg (51.59 lbs., empty chassis); 33.6 kg (74.08 lbs., a chassis with four power modules and eight fan modules) |
| Rack height | 4 RU |
| Model | RG-S6930-2C |
Need installation or a bulk quote? Talk to our team.
