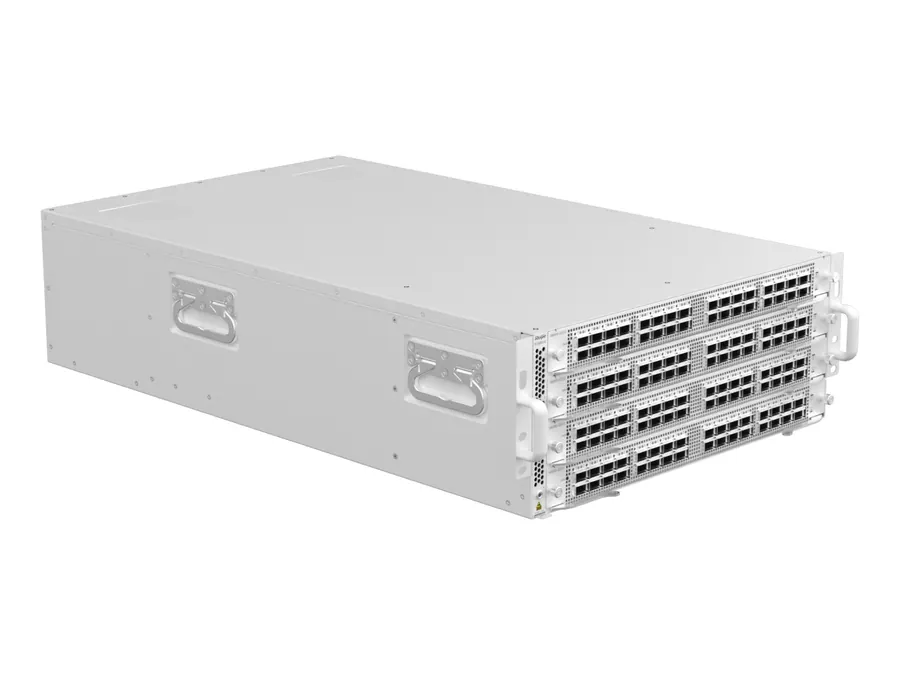

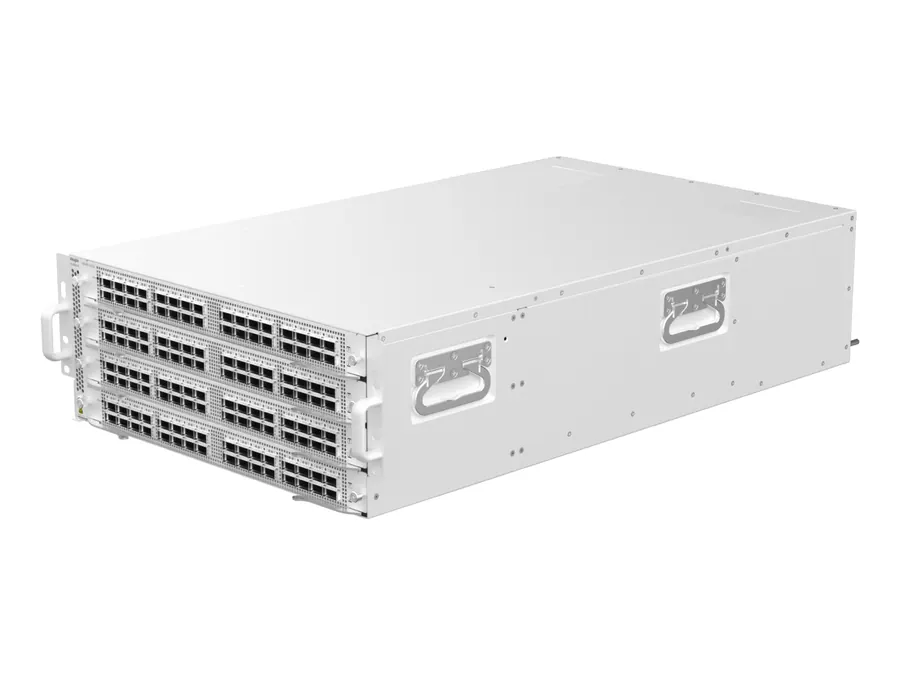

RG-S6920-4C Next-Generation Data Center 100GE Switch with 100GE/400GE Line Cards
Model: RG-S6920-4C
Pricing for this product is provided on request.
Request a quoteNext-Generation Data Center 100GE Switch with 100GE/400GE Line Cards. Compared with the traditional networking with modular core switches, the entire network with RG-S6920-4C switches uses the Clos architecture, reducing the TCO by 25% and power consumption by 31%. Furthermore, RG-S6920-4C switches help build stable and lossless networks. With RDMA technology, data does not need to be handled by the CPU during device communication.
Specifications
| Switching capacity | 25.6 Tbps |
| Packet forwarding rate | 8000 Mpps |
| Module slot | 4 x expansion module slots; 4 x power module slots; 6 x fan module slots |
| Dimensions(W x D x H) | 442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 1950 W; Typical power consumption: 1469 W; Static power consumption: 516 W |
| Unit weight | 25.15 kg (55.45 lbs., empty chassis); 34.25 kg (75.51 lbs., a chassis with four power modules and six fan modules) |
| Rack height | 4 RU |
| Model | RG-S6920-4C |
