Ruijie

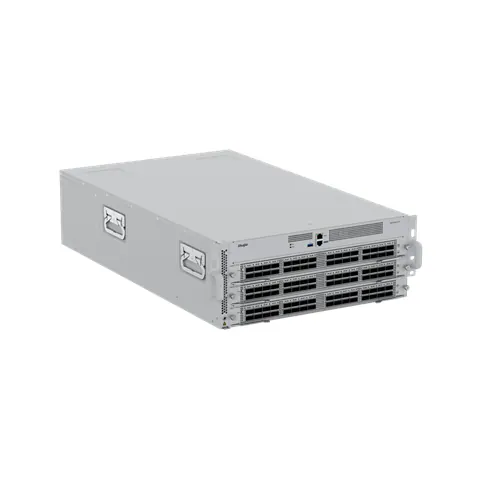

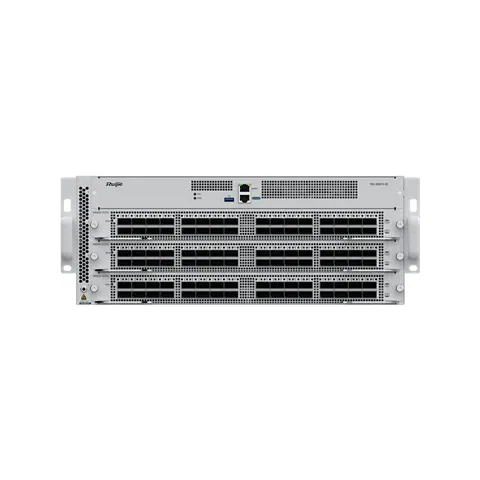

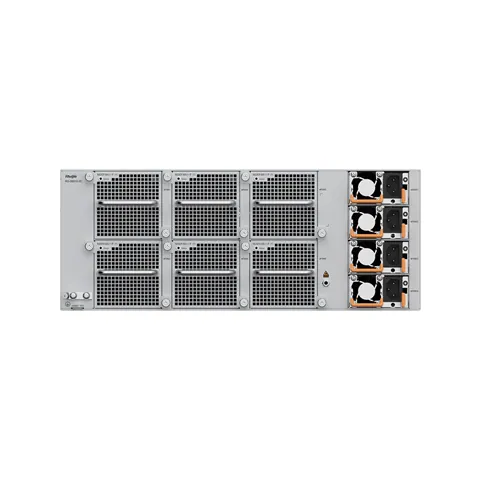

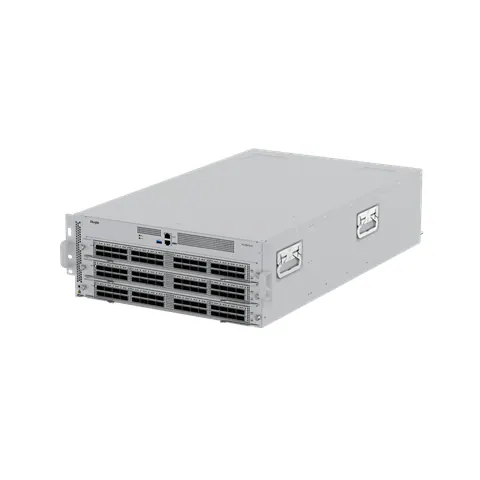

RG-S6910-3C Data Center 100GE High-Density Modular Core Switch (Backward Compatible with 40GE) in the 4-RU Space
Model: RG-S6910-3C
Pricing for this product is provided on request.
Request a quoteData Center 100GE High-Density Modular Core Switch (Backward Compatible with 40GE) in the 4-RU Space. 16 GB buffer that supports high-performance routing connections, and future evolution to 400GE data center network. Power modules in 2+2 redundancy mode, hot swapping, and failover in seconds, providing nonstop services.
Specifications
| Switching capacity | 19.2 Tbps |
| Packet forwarding rate | 4000 Mpps |
| Module slot | 3 x expansion module slots; 4 x power module slots; 6 x fan module slots |
| Dimensions (W x D x H) | 442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.,4 RU) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 2046 W; Typical power consumption: 1092 W; Static power consumption: 760 W |
| Unit weight | 22.9 kg (50.49 lbs., empty chassis); 32 kg (70.55 lbs., a chassis with four power modules and six fan modules) |
| Rack height | 4 RU |
| Model | RG-S6910-3C |
Need installation or a bulk quote? Talk to our team.
