Ruijie

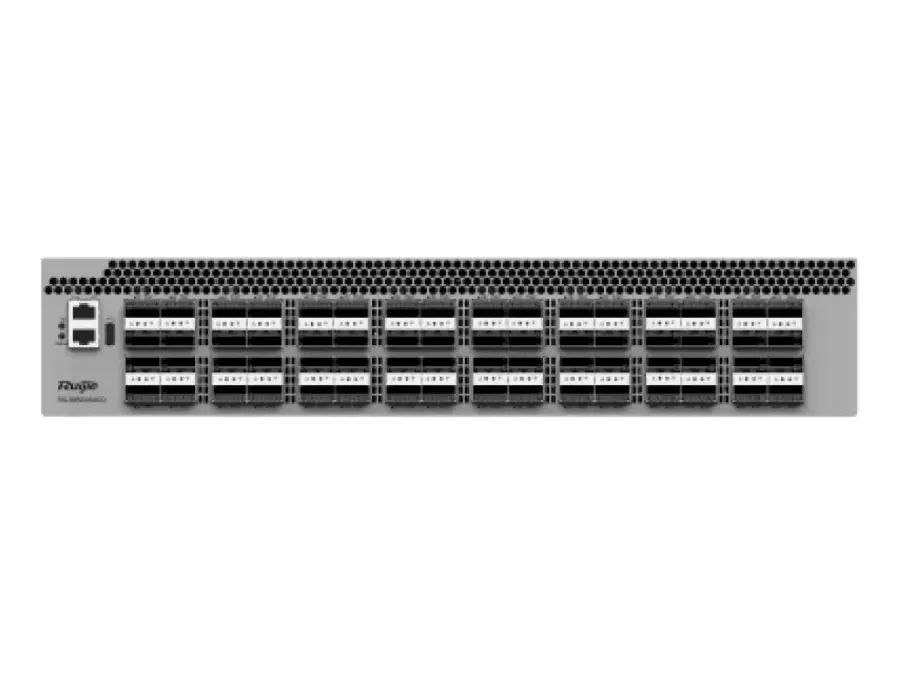

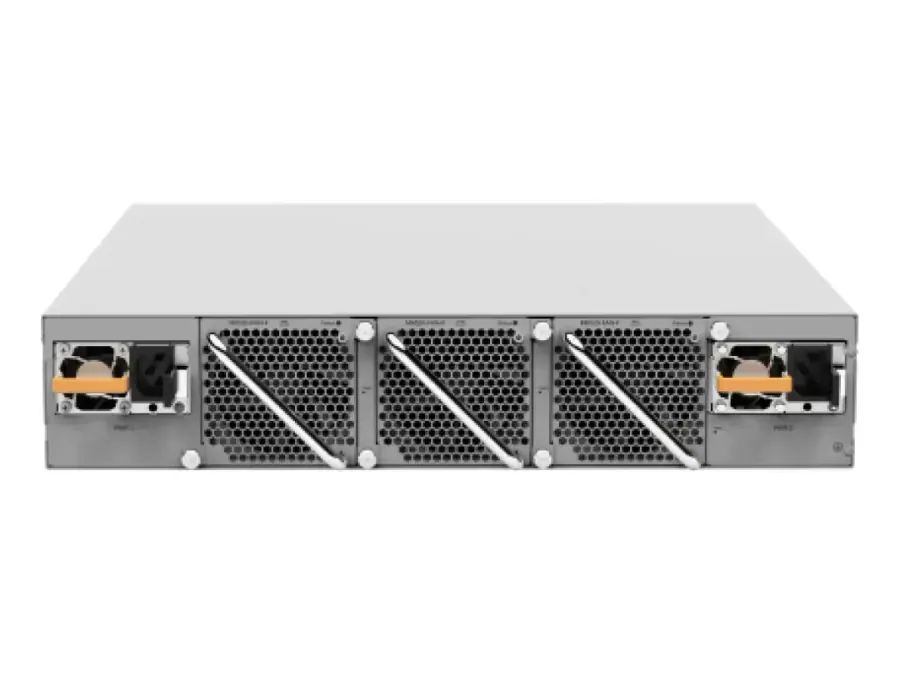

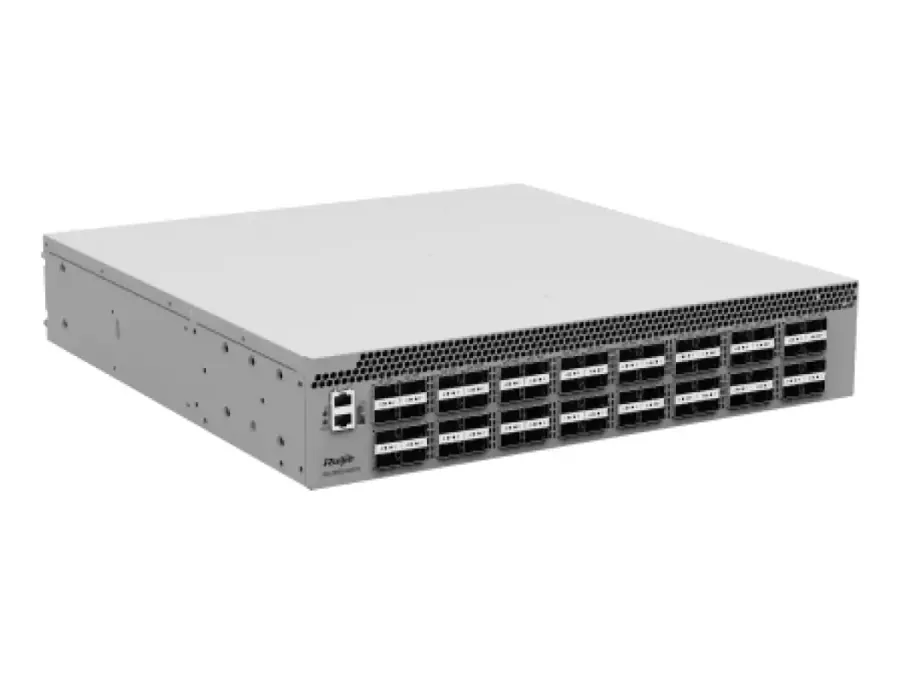

RG-S6520-64CQ 100GE Data Center Access Switch
Model: RG-S6520-64CQ
Pricing for this product is provided on request.
Request a quote100GE Data Center Access Switch. Recommended for large-scale Spine-Leaf three-tier DCI scenarios, M-LAG/VSU/de-stacking for higher availability. Cross-device Link Aggregation, Implementing Device-level Redundancy, Flexible Networking, and High Reliability.
Specifications
| Switching capacity | 12.8 Tbps |
| Packet forwarding rate | 4482 Mpps |
| Service port | 64 x 40G/100G QSFP28 ports |
| Dimensions (W x D x H) | 442 mm x 450 mm x 88.1 mm (17.40 in. x 17.72 in. x 3.47 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 600 W; Typical power consumption: 410 W; Static power consumption: 222 W |
| Unit weight | 14.7 kg (32.41 lbs., a chassis with two power modules and three fan modules) |
| Rack height | 2 RU |
| Model | RG-S6520-64CQ |
Need installation or a bulk quote? Talk to our team.
