Ruijie

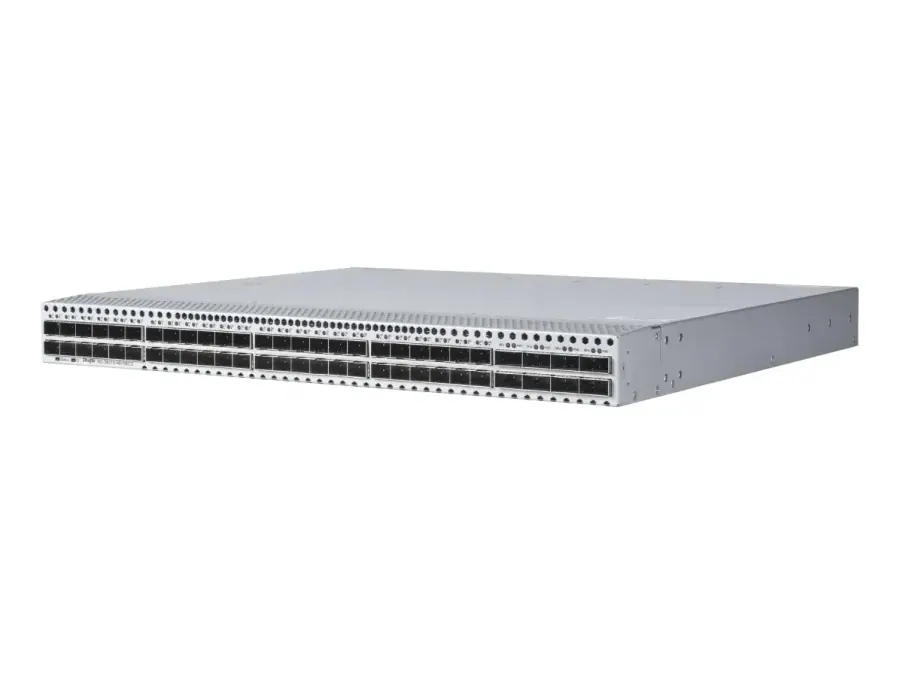

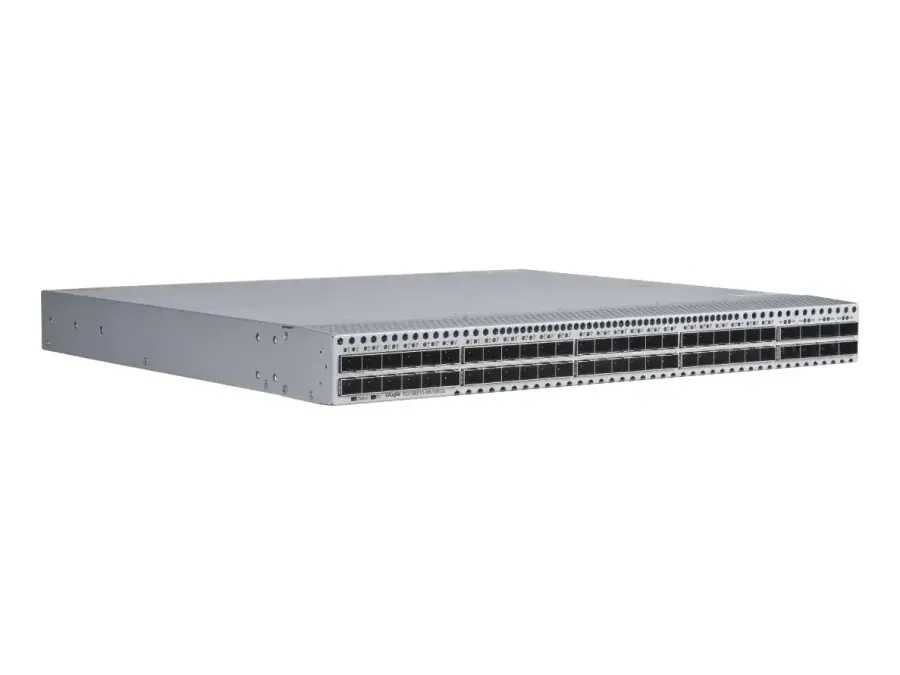

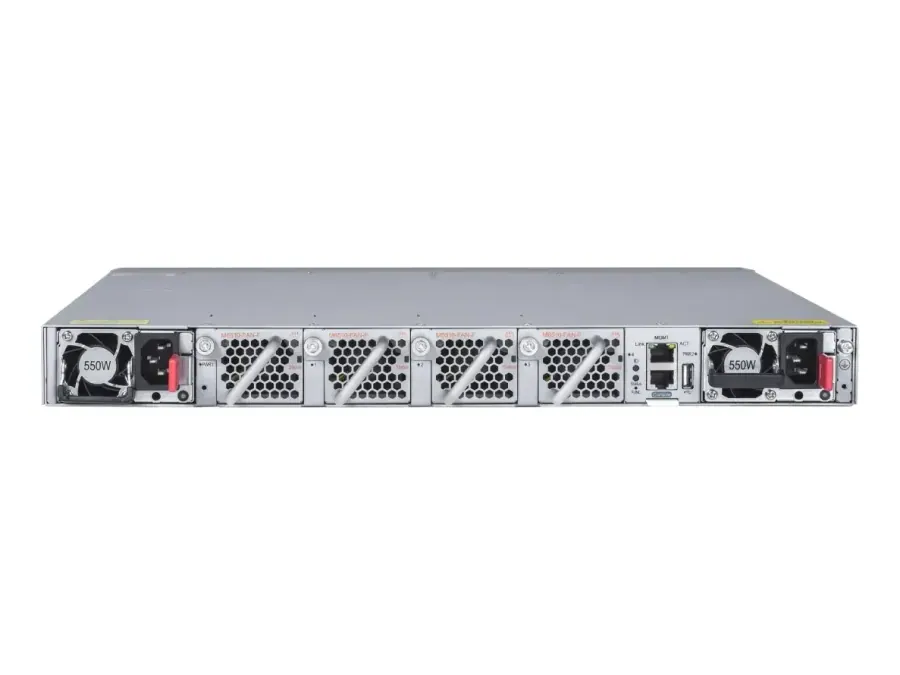

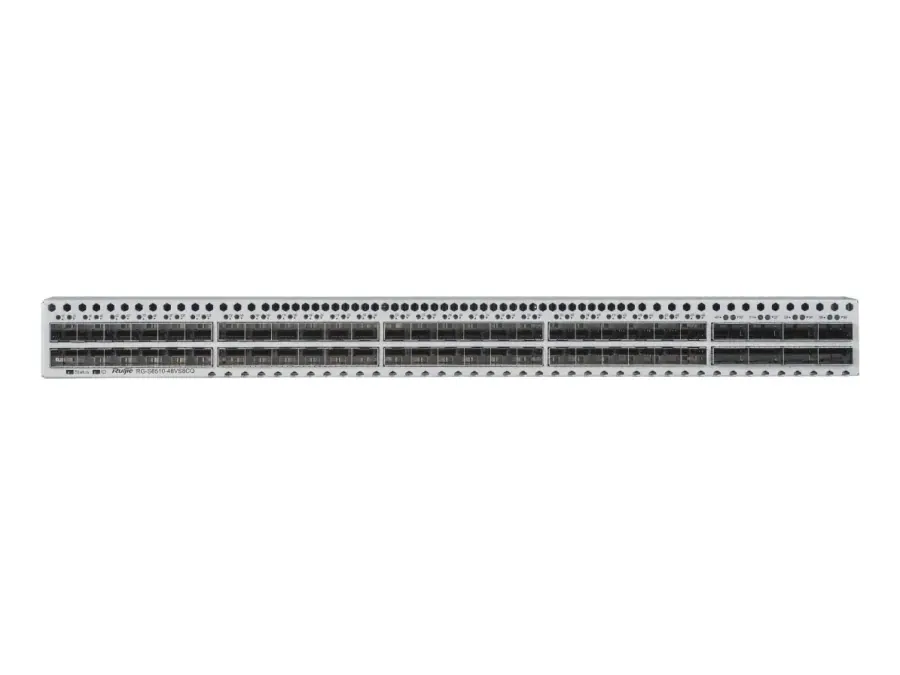

RG-S6510-48VS8CQ 25GE Data Center Access Switch
Model: RG-S6510-48VS8CQ
Pricing for this product is provided on request.
Request a quote25GE Data Center Access Switch. RDMA-capable high-density 25GE/100GE access switch for data center networks with low latency and no packet drop. 8 x 25GE SFP28 ports and 8 x 100GE QSFP28 ports, delivering line-rate forwarding capacity 32 MB buffer and advanced buffer scheduling mechanism, providing fast data processing and easily coping with burst traffic.
Specifications
| Switching capacity | 4.0 Tbps |
| Packet forwarding rate | 2000 Mpps |
| Service port | 48 x 10G/25G SFP28 ports; 8 x 40G/100G QSFP28 ports |
| Dimensions (W x D x H) | 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 300 W; Typical power consumption: 172 W; Static power consumption: 98 W |
| Unit weight | 5.6 kg (12.35 lbs., empty chassis); 8.2 kg (18.08 lbs., a chassis with two power modules and four fan modules) |
| Rack height | 1 RU |
| Model | RG-S6510-48VS8CQ |
Need installation or a bulk quote? Talk to our team.
