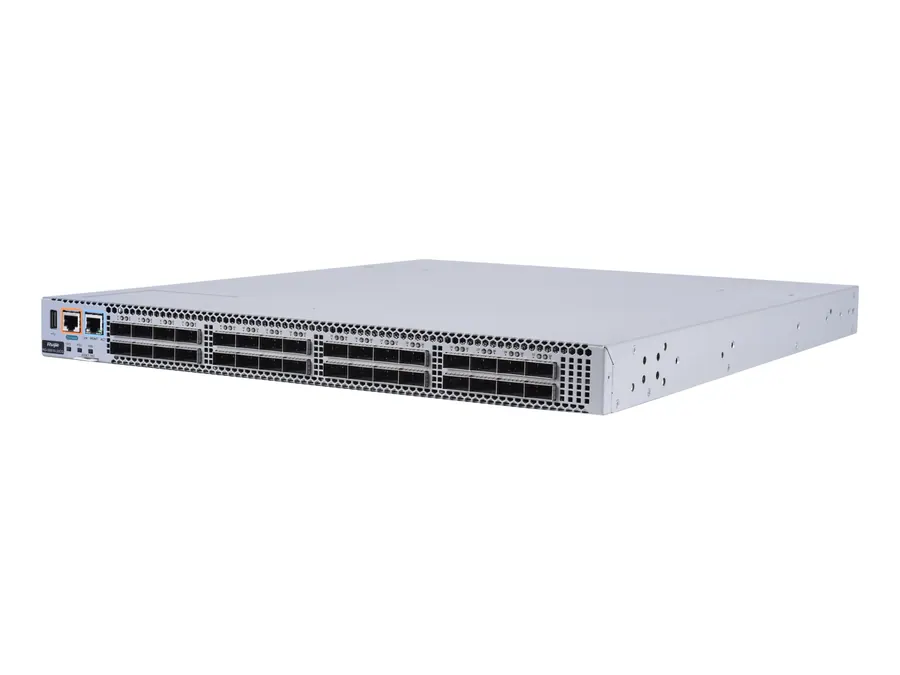

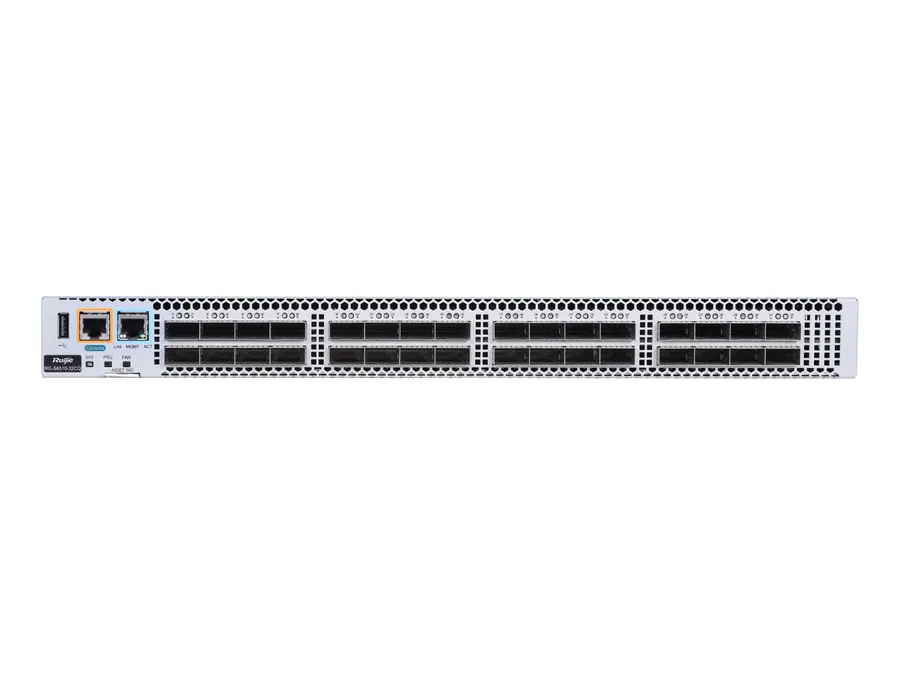

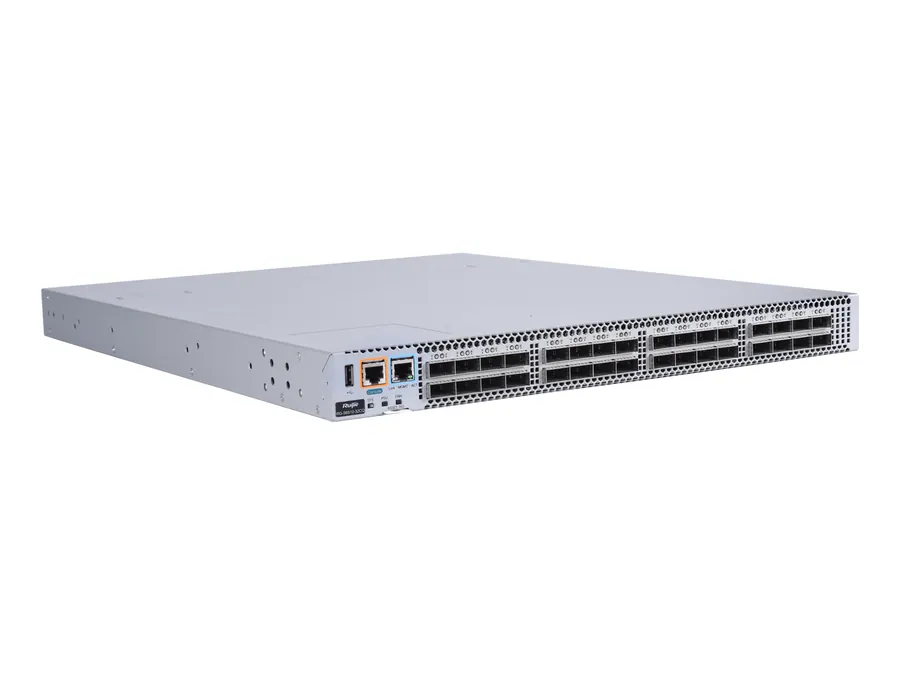

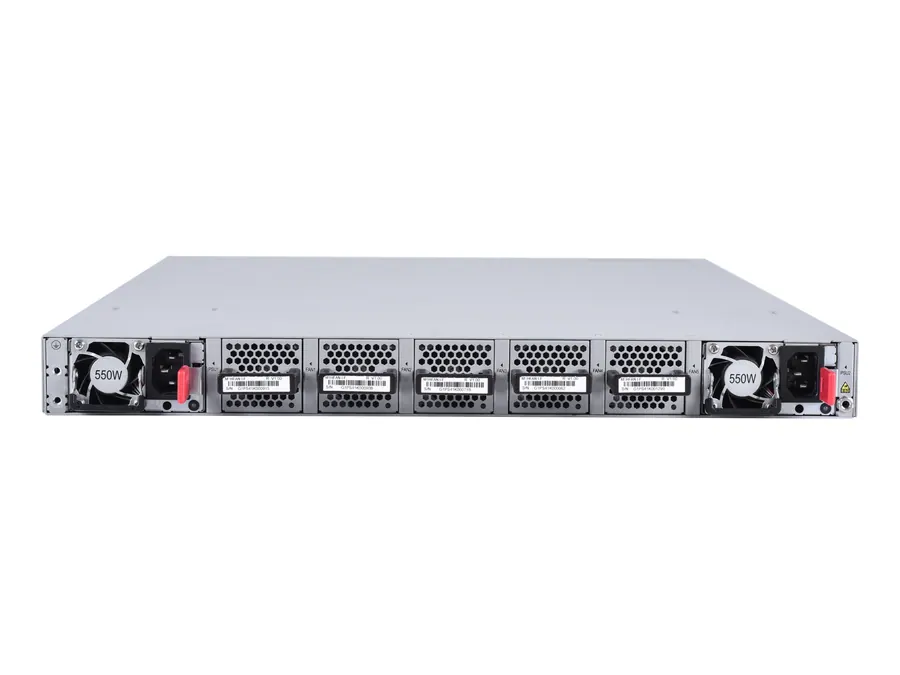

RG-S6510-32CQ Data Center 100GE DCI Access Switch
Model: RG-S6510-32CQ
Pricing for this product is provided on request.
Request a quoteData Center 100GE DCI Access Switch. They are highlighted by their high performance, high density, and the data speed of up to 25 Gbps/100 Gbps. They meet the Spine-Leaf network architecture design requirements. Cross-device Link Aggregation, Implementing Device-level Redundancy, Flexible Networking, and High Reliability.
Specifications
| Switching capacity | 6.4 Tbps |
| Packet forwarding rate | 2030 Mpps |
| Service port | 32 x 100G QSFP28 ports |
| Dimensions (W x D x H) | 442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 450 W; Typical power consumption: 270 W; Static power consumption: 150 W |
| Unit weight | 8.4 kg (18.52 lbs., empty chassis); 11.4 kg (25.13 lbs., a chassis with two power modules and five fan modules) |
| Rack height | 1 RU |
| Model | RG-S6510-32CQ |
