Ruijie

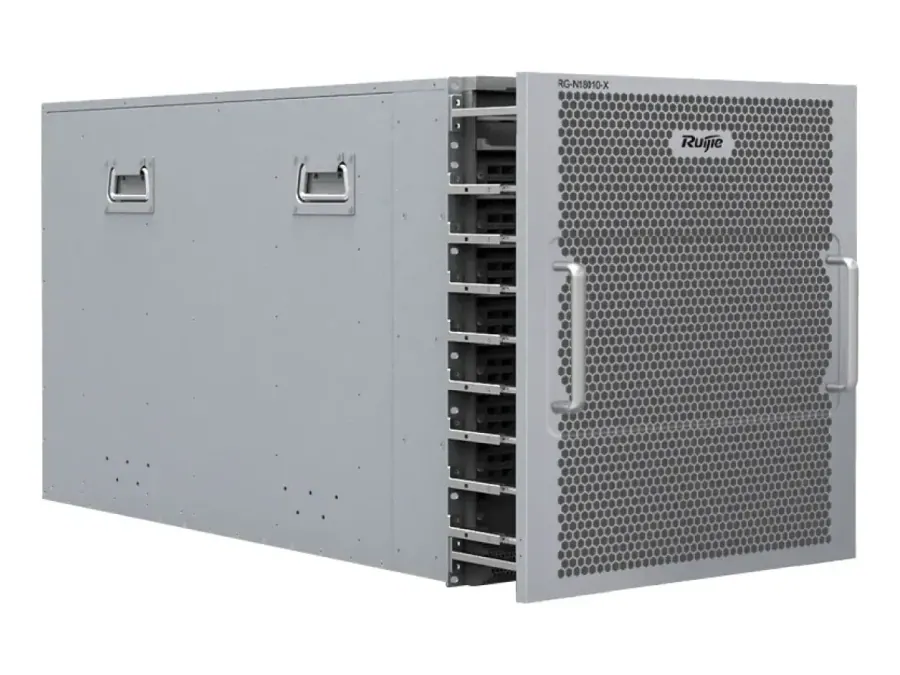

RG-N18010-X Data Center Modular Core Switch with Eight Line Card Slots
Model: RG-N18010-X
Pricing for this product is provided on request.
Request a quoteData Center Modular Core Switch with Eight Line Card Slots. Fit for the core or aggregation node of a legacy data center or core node of a cloud data center, enabling smooth evolution to 400GE in future. Up to 384 x 100GE ports, 288 x 40GE ports, and 1152 x 10GE ports, for line-rate forwarding. Ultra-large distributed buffer design, 200 ms buffering per port, and 24 GB buffer per card, ensuring zero packet loss upon traffic burst.
Specifications
| Switching capacity | 153.6 Tbps |
| Packet forwarding rate | 34,560 Mpps |

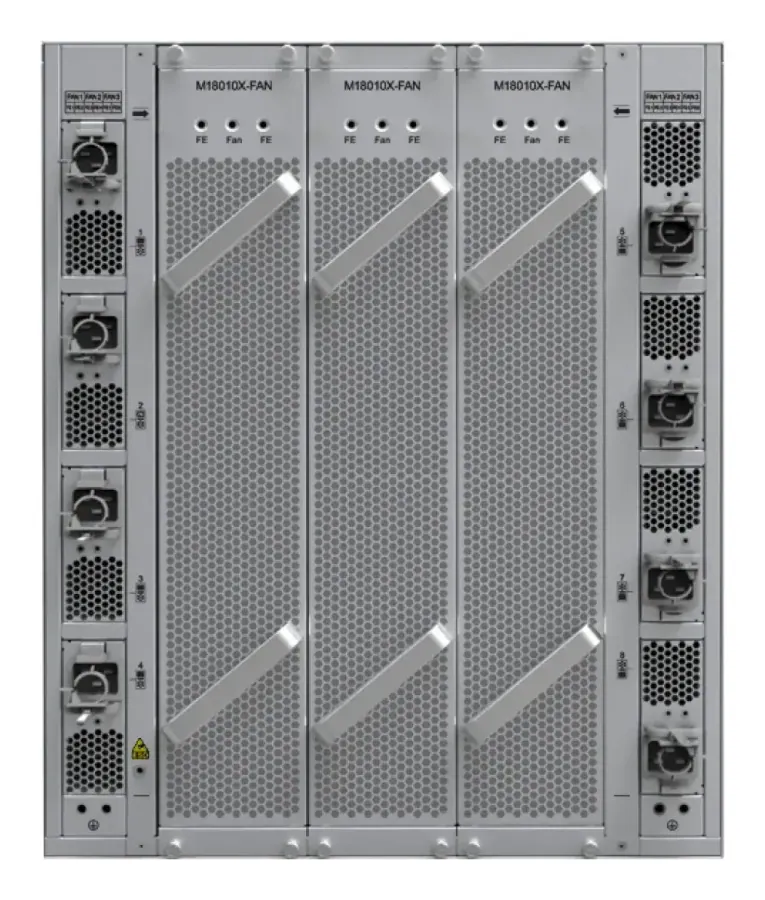

| Module slots | 2 x supervisor module slots; 8 x line card slots; 6 x switch fabric module slots; 8 x power module slots; 3 x fan module slots |
| Dimensions (W x D x H) | 442 mm x 961 mm x 534 mm (17.40 in. x 37.83 in. x 21.02 in.), without the cable management bracket; 442 mm x 1017 mm x 534 mm (17.40 in. x 40.04 in. x 21.02 in.), with the cable management bracket. |
| Operating temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Unit weight | 52 kg (114.640 lbs., a chassis with three fan modules) |
| Rack height | 12 RU |
| Model | RG-N18010-X |
Need installation or a bulk quote? Talk to our team.
