Ruijie

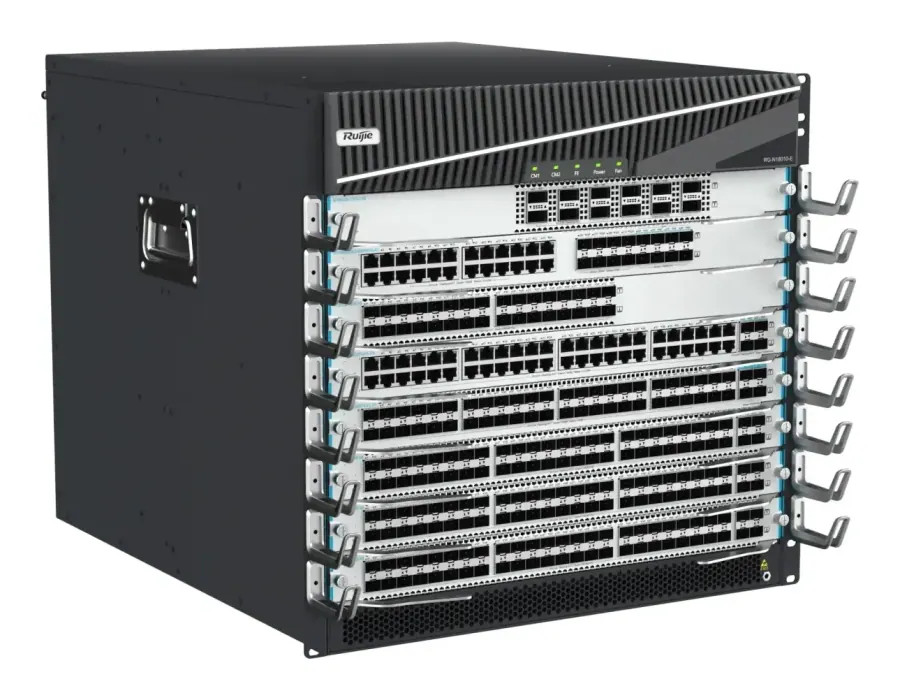

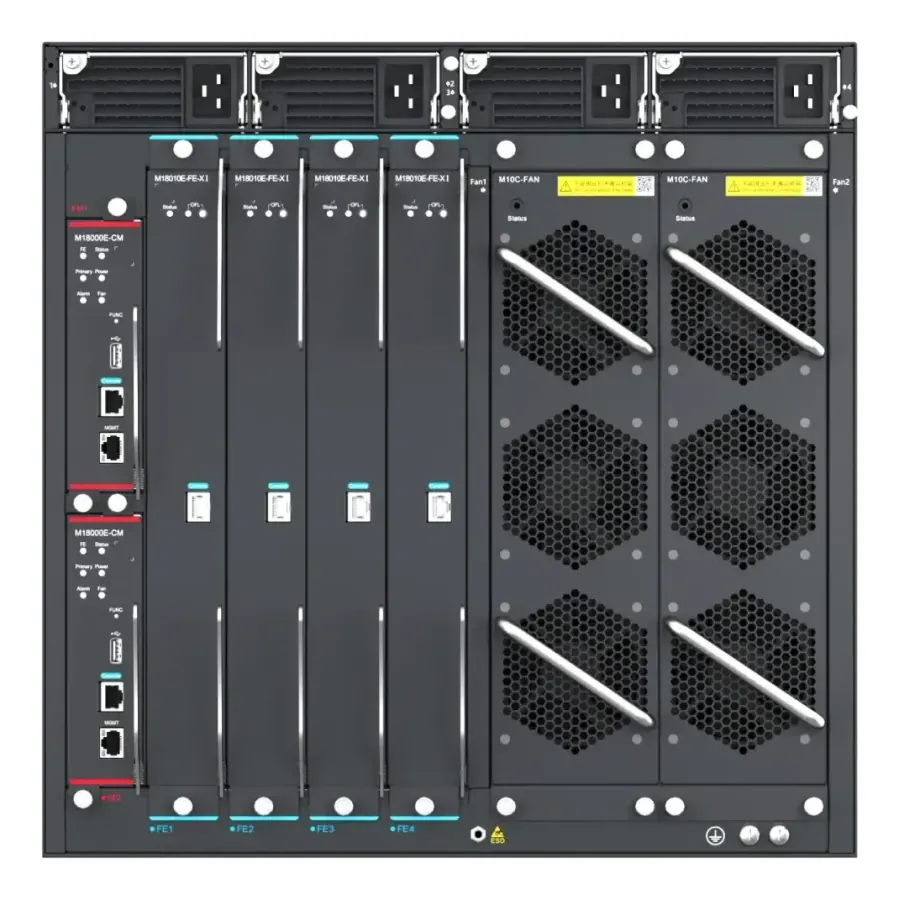

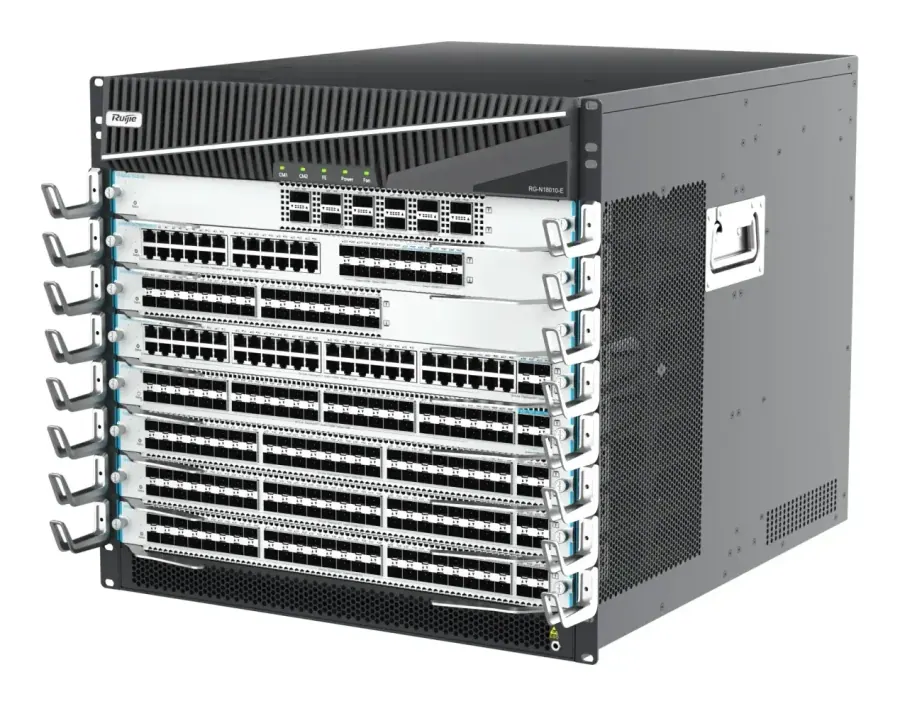

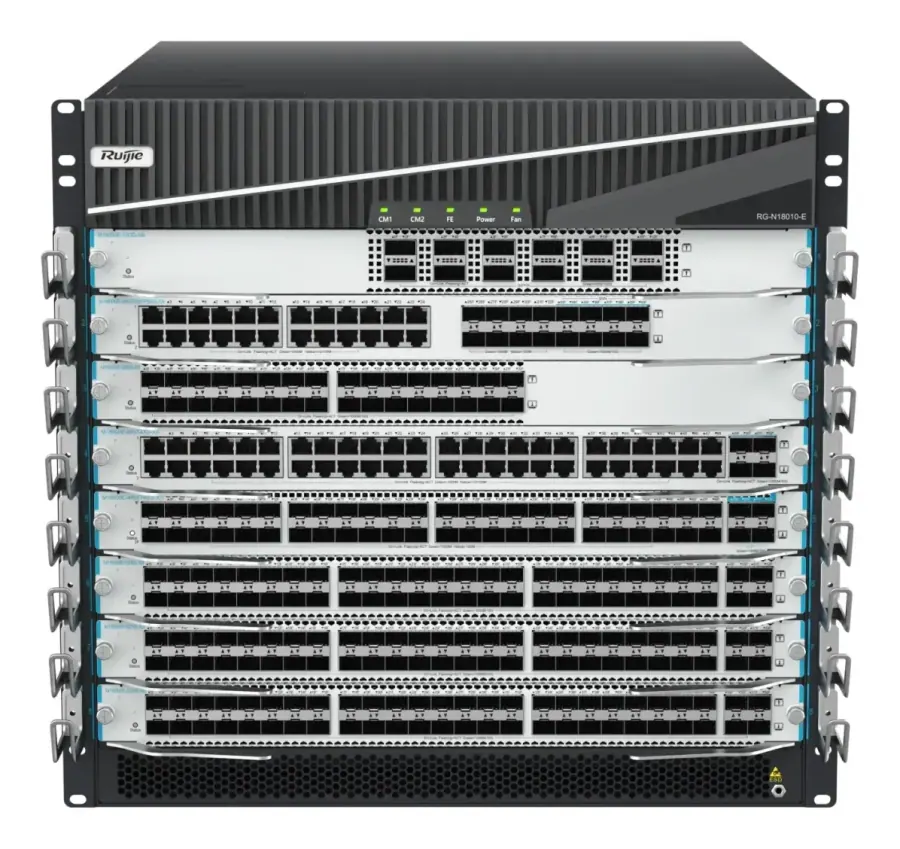

RG-N18010-E High-density Large-buffer Core Switch for Cloud Architecture Network
Model: RG-N18010-E
Pricing for this product is provided on request.
Request a quoteHigh-density Large-buffer Core Switch for Cloud Architecture Network. Fit for data centers, MANs, campus networks, and scenarios with data centers and campus networks.
Specifications
| Supervisor module slot | 2 |
| Line card slot | 8 |
| Switch fabric module slot | 4 |
| Fan module | 2 |
| System packet forwarding rate | 14,200 Mpps |
| System switching capacity | 19.2Tbps |
| Unit dimensions (W x D x H) | 442.0 mm x 561.0 mm x 442.5 mm (17.40 in. x 22.09 in. x 17.42 in.）cable management bracket excluded |
| Unit weight | 43.6 kg (96.12 lbs, empty chassis with 2 fan modules) |
| Module management port | Supervisor module: 1 x RJ45 console port; 1 x RJ45 MGMT port; Switch fabric module: 1 x RJ45 console port |
| Power module | RG-PA600I; RG-PA1600I |
| Rack height | 10 RU |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 342,000 hours (about 39 years) |
| Model | RG-N18010-E |
Need installation or a bulk quote? Talk to our team.
