Ruijie

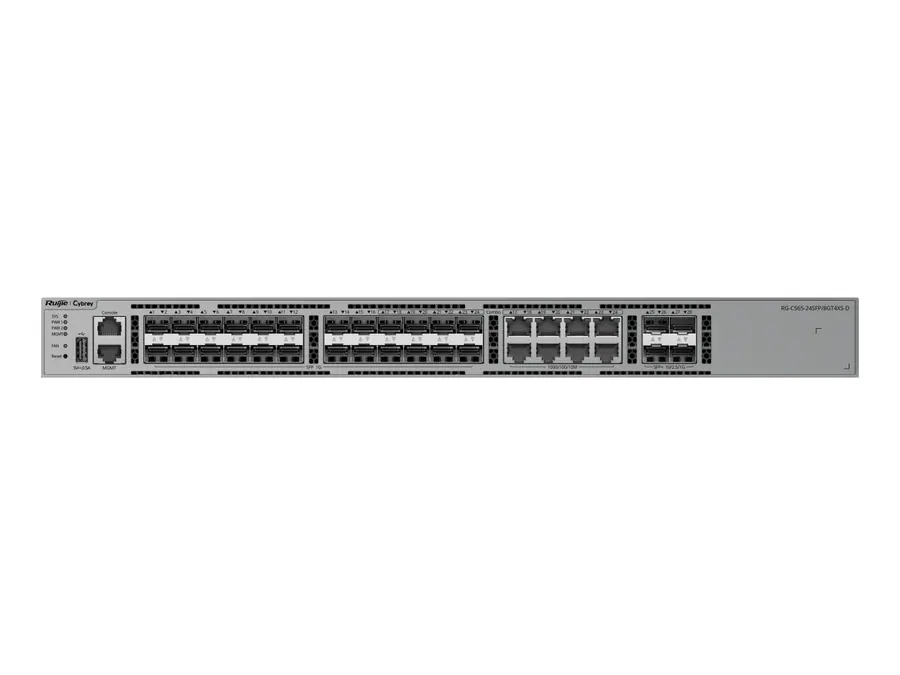

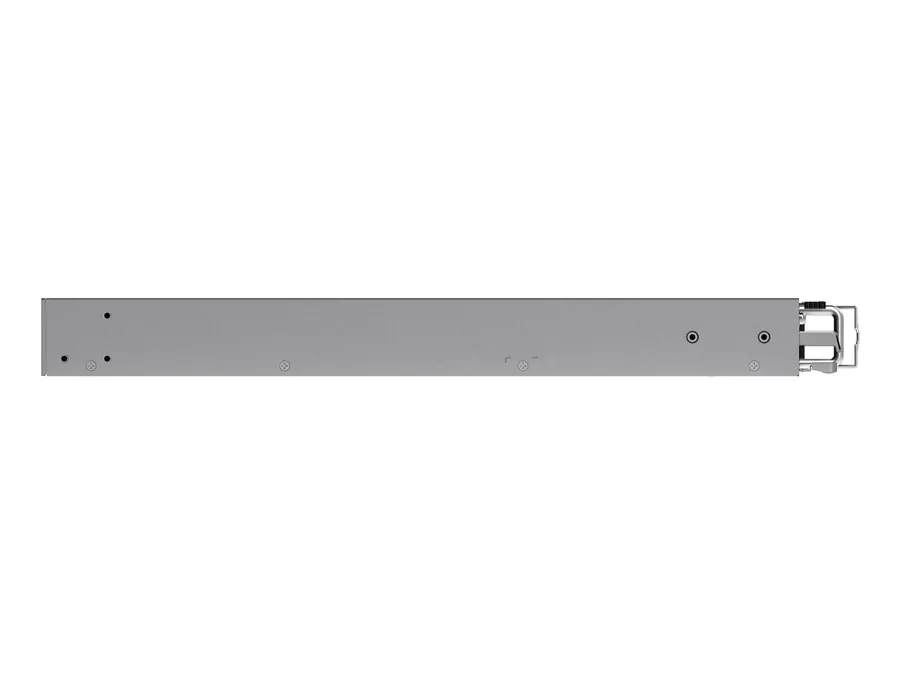

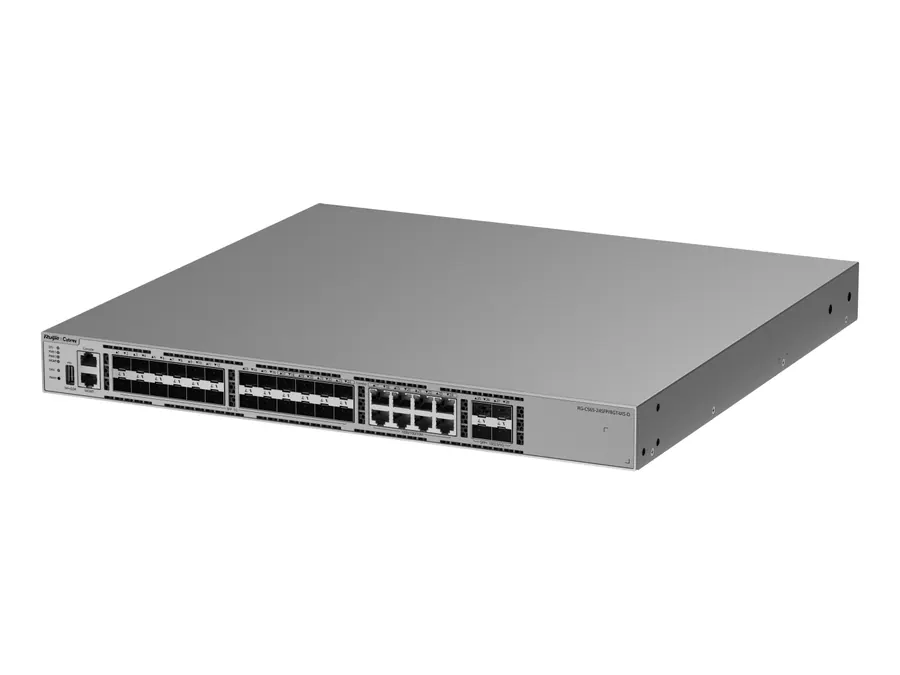

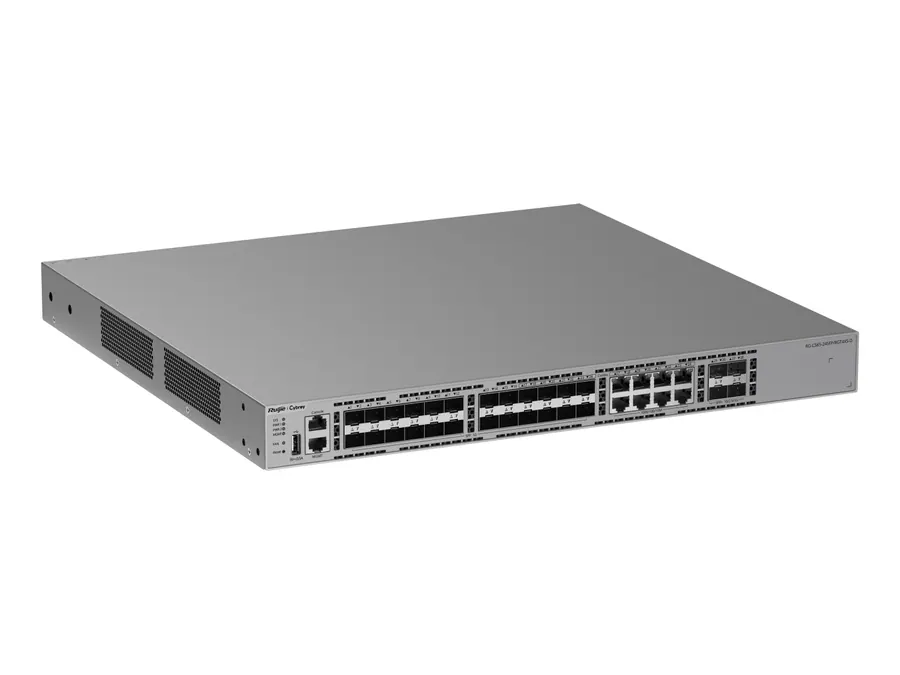

RG-CS63-24MG4XS-UPD Layer 3 Access Switches with 10G Uplinks
Model: RG-CS63-24MG4XS-UPD
Pricing for this product is provided on request.
Request a quoteLayer 3 Access Switches with 10G Uplinks. Suited to offices, hotels, warehouses, hospitals, and schools. Highlights: Access Switches with 10G Uplinks; 90 W PoE (Class 8); 8-Unit Stacking.
Specifications
| Fixed service port | 24 x 10/100/1000/2.5GBASE-T ports, supporting PoE/PoE+/PoE++; 4 x 1GE/10GE SFP+ ports |
| Console port | 1 |
| MGMT port | 1 |
| USB | 1 |
| Switching capacity | 200 Gbps (Gbit/s) |
| Forwarding rate | 148.8 Mpps |
| Unit dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm (17.4 in. x 16.54 in. x 1.72 in.) |
| Unit weight | 5.1 kg (11.24 lbs) |
| Maximum power consumption | Full-load: 110 V: 1900 W; 220 V: 1850 W; No-load: 110 V: 93.5 W; 220 V: 90.9 W |
| PoE | Yes |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Fan | 3 x fixed fans |
| Warranty | 5 years |
| Aggregate interface | LACP basics |
| Model | RG-CS63-24MG4XS-UPD |
