RG-CNC105 Routing · Wireless Control · PoE Switching · Authentication, 4-in-1 Edge Controller
Ruijie
RG-CNC105 Routing · Wireless Control · PoE Switching · Authentication, 4-in-1 Edge Controller
Model: RG-CNC105
Pricing for this product is provided on request.
Request a quoteThe RG-CNC105 is a 4-in-1 edge controller that integrates a router, a wireless controller, a 2.5G PoE switch and an authentication server. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: Four 2.5G PoE ports with up to 120 W output for direct AP powering; Multi-vendor management for rapid fault localization in complex networks.
Specifications

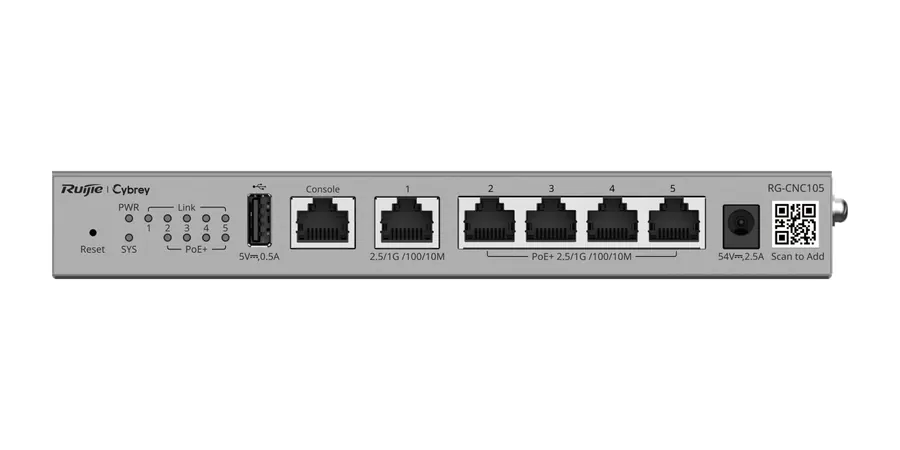

| Ports | 5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output |
| Dimensions (W x D x H) | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in., without rack-mount brackets) |
| Power input | DC adapter input: Rated input voltage: 100 V AC to 240 V AC, 50 Hz or 60 Hz; Rated input current: 2.0 A; DC adapter output: Rated output voltage: 54 V DC; Maximum output current: 2.5 A |
| Power output | Supported; The Ethernet port provides 54 V/30 W power output.; The USB port provides 5 V/0.5 A power output |
| DC power supply | DC power adapter |
| Max power consumption | 132 W |
| PoE budget | 120 W |

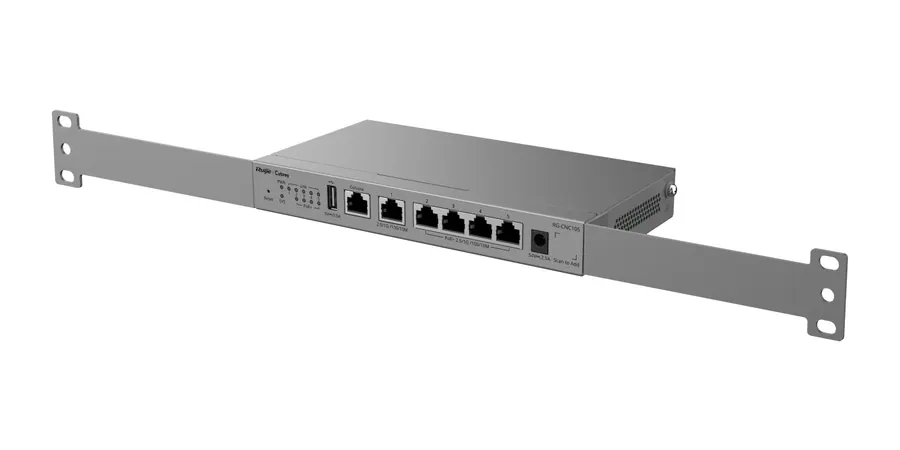

| Mounting | Desktop placement, rack-mount, and wall-mount |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Model | RG-CNC105 |
