RG-AP1920(V2) Wi-Fi 7 Dual-Radio 3.570 Gbps Wall Plate Access Point
Ruijie
RG-AP1920(V2) Wi-Fi 7 Dual-Radio 3.570 Gbps Wall Plate Access Point
Model: RG-AP1920(V2)
Pricing for this product is provided on request.
Request a quoteThe RG-AP1920(V2) is a Wi-Fi 7 dual-radio 3.570 Gbps wall plate access point. Suitable for indoor scenarios such as dormitories, small offices, and guest rooms across higher education, government, K12 education, finance, and commercial sectors. Key features: Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps; Rich port design for integrated wired and wireless coverage.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be |
| Radio design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2), up to 4 spatial streams |
| Max data rate | 3.570Gbps |
| Antenna | Built-in omnidirectional smart antennas |

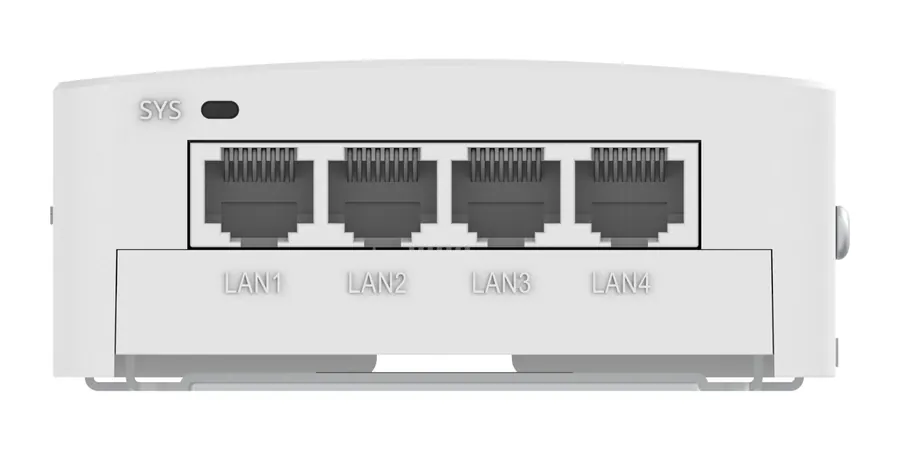

| Ports | 1 x 10/100/1000/2.5GBASE-T port; 4 x 10/100/1000BASE-T ports |
| Bluetooth | Bluetooth 5.3 |
| Max associated clients | 256 (up to 128 STAs per radio) |
| Power supply | 48 V DC/0.3 A power input over DC connector; PoE input, in compliance with IEEE 802.3af |
| Max power consumption | 11.63 W |
| Operating temperature | –10°C to +40°C (14°F to 104°F) |
| Dimensions (W x H x D) | 86 mm x 160 mm x 35 mm (3.39 in. x 6.30 in. x 1.38 in.) |

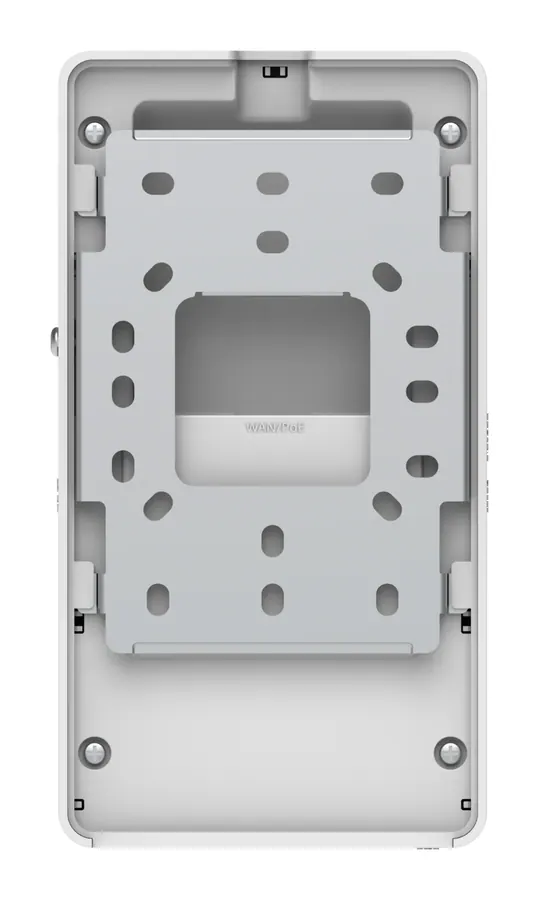

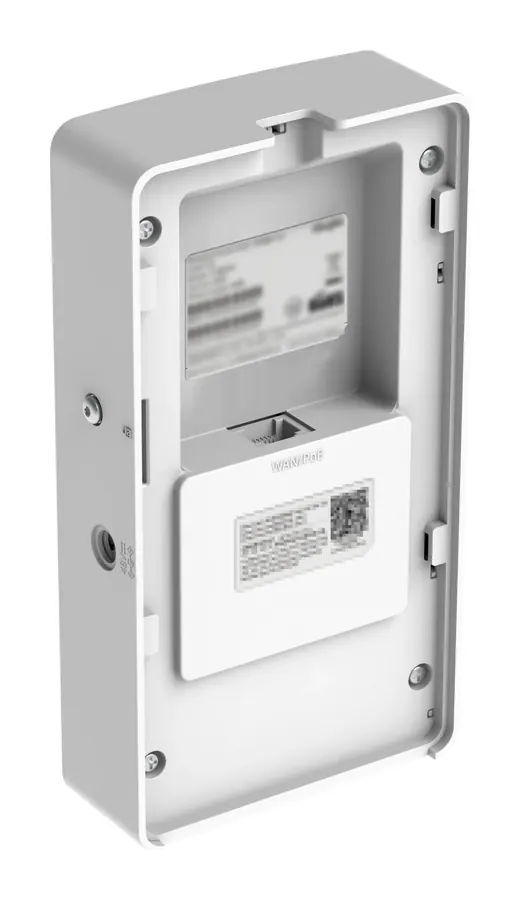

| Mounting | Mounting in the 86 mm junction box or wall-mounting |
| Model | RG-AP1920(V2) |
