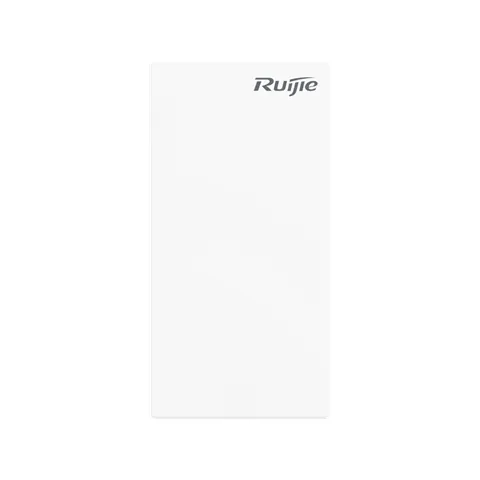

RG-AP180P-L Wi-Fi 6 Dual-Radio 2.976 Gbps Wall Plate AP
Ruijie
RG-AP180P-L Wi-Fi 6 Dual-Radio 2.976 Gbps Wall Plate AP
Model: RG-AP180P-L
Pricing for this product is provided on request.

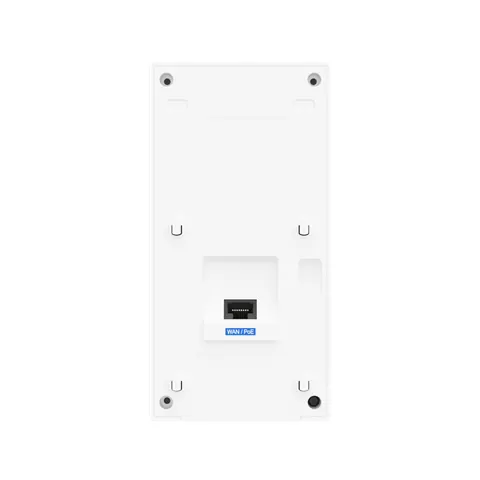

Request a quoteThe RG-AP180P-L is a Wi-Fi 6 dual-radio 2.976 Gbps wall plate AP. Suited to high-density small-sized scenarios covering star hotels, enterprise VIP offices, and apartments. Key features: Flat rear panel, easy installation on any wall in all countries; 2.5 Gbps uplink port, achieving ultra-high speed access in rooms.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2); up to 4 spatial streams |
| Max data rate | Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps |
| Antenna | Built-in omnidirectional antennas |

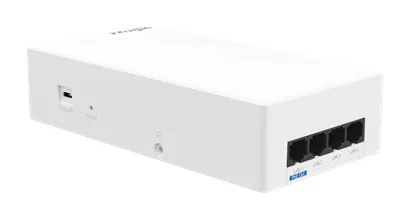

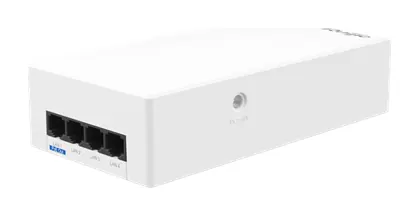

| Ports | Uplink: 1 x 100/1000/2.5GBASE-T port; Downlink: 4 x 10/100/1000BASE-T ports |
| Bluetooth | Bluetooth 5.1 |
| Power supply | 48 V DC/0.6 A power supply; PoE/PoE+ (802.3af/at) |
| Max power consumption | 25 W |
| External power supply | Yes |
| Operating temperature | 0°C to +40°C (32°F to +104°F) |
| Dimensions (W x H x D) | 86 mm x 170 mm x 43 mm (3.39 in × 6.69 in × 1.69 in) |
| Mounting | Wall-mount/86-mm, EU, and US standard junction boxes |
| Warranty | 3 Years |
| Model | RG-AP180P-L |
Need installation or a bulk quote? Talk to our team.
Related products

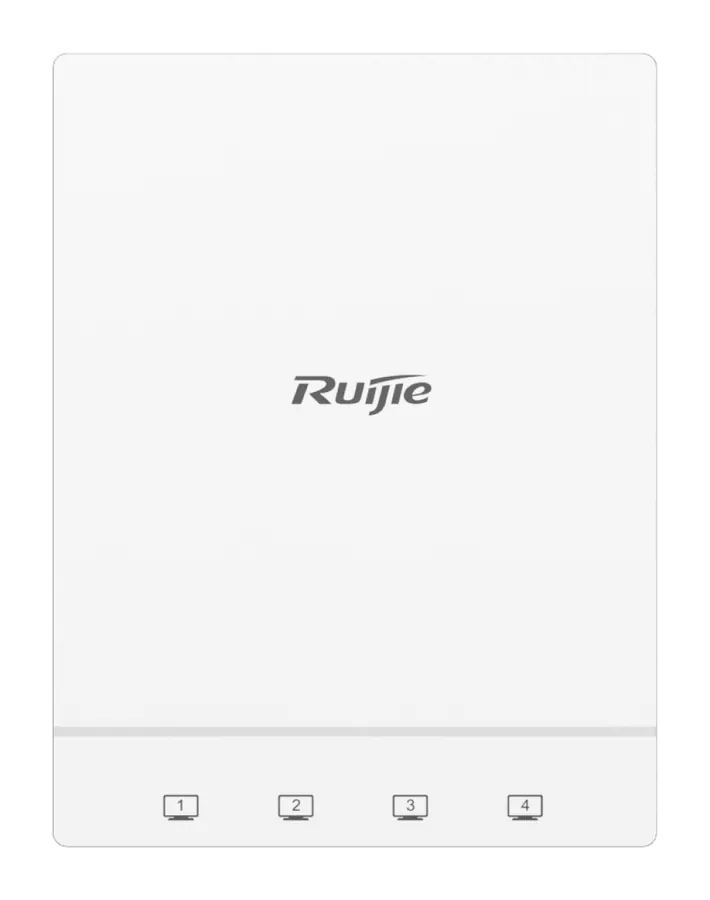

RuijieRG-AP180 Wi-Fi 6 Dual Radio 1.775 Gbps Indoor Wall Plate Wireless AP
