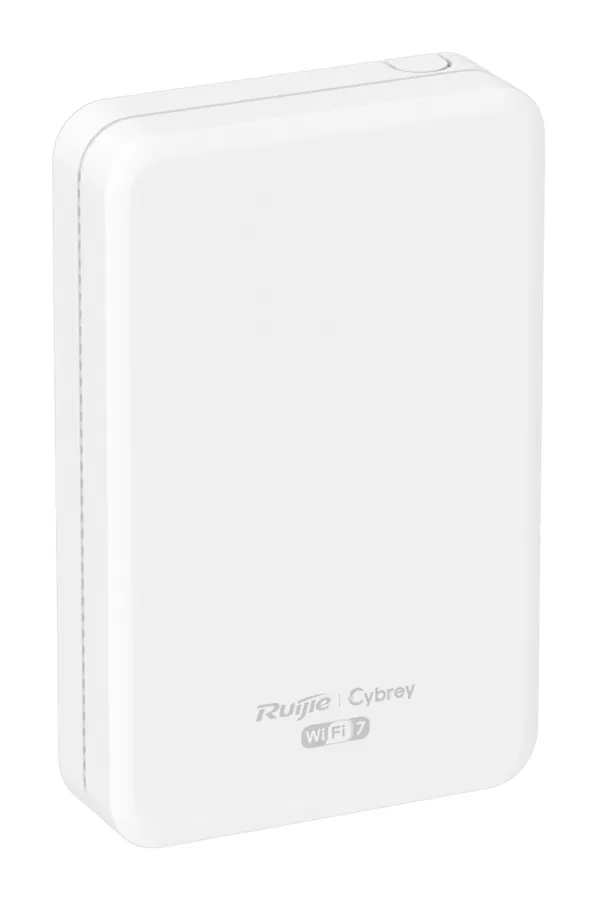

RG-CAP72-WP Wi-Fi 7 BE3600 Wall-Plate Access Point
Ruijie
RG-CAP72-WP Wi-Fi 7 BE3600 Wall-Plate Access Point
Model: RG-CAP72-WP
Pricing for this product is provided on request.
Request a quoteThe RG-CAP72-WP is a Wi-Fi 7 BE3600 wall-plate access point. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: BE3600 Wi-Fi 7 speed with lower latency for office and guestroom environments; 4096-QAM for 20% higher peak data rates than Wi-Fi 6.
Specifications
| Wi-Fi standard | IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio; 4 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO |
| Max data rate | Combined peak data rate: 3570 Mbps; Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 2882 Mbps |
| Antenna | 2.4 GHz and 5 GHz: 2 x built-in dual-band omnidirectional antennas |

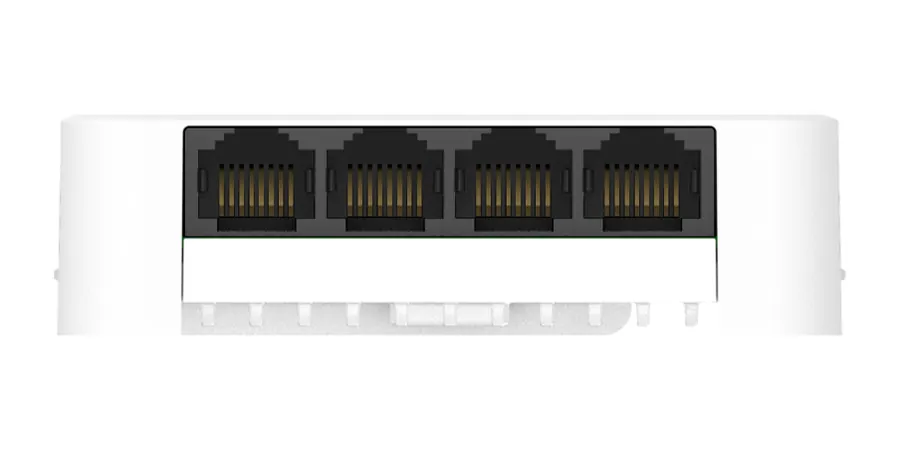

| Ports | 1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at PoE input; 3 x 10/100/1000BASE-T ports; 1 x 10/100/1000BASE-T port, supporting PoE output |
| Max associated clients | 1024 |
| PoE power supply | IEEE 802.3af (PoE); IEEE 802.3at (PoE+) |
| Power output | Supported; LAN4 port can provide 54 V/10 W power output |
| PoE budget | 10 W (with an IEEE 802.3at-compliant power source) |
| Max power consumption | 23.5 W (including 10 W PoE output) |
| Operating temperature | –10°C to +40°C (14°F to 104°F) |
| Dimensions (W x D x H) | 86 mm x 25 mm x 135 mm (3.39 in. x 0.98 in. x 5.31 in., without the mounting bracket) |
| Mounting | Wall-mount and junction box-mount |
| Model | RG-CAP72-WP |
Need installation or a bulk quote? Talk to our team.
