RG-CAP72-I Wi-Fi 7 BE3600 Ceiling Mount Access Point
Ruijie
RG-CAP72-I Wi-Fi 7 BE3600 Ceiling Mount Access Point
Model: RG-CAP72-I
Pricing for this product is provided on request.
Request a quoteThe RG-CAP72-I is a Wi-Fi 7 BE3600 ceiling mount access point. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: BE3600 Wi-Fi 7 speed for hotel lobbies, conference areas, open offices, and warehouse sorting zones; 4096-QAM for 20% higher peak data rates than Wi-Fi 6.
Specifications
| Wi-Fi standard | IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio; 4 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO |
| Max data rate | Combined peak data rate: 3570 Mbps; Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 2882 Mbps |
| Antenna | 2.4 GHz and 5 GHz: 2 x built-in dual -band omnidirectional antennas |

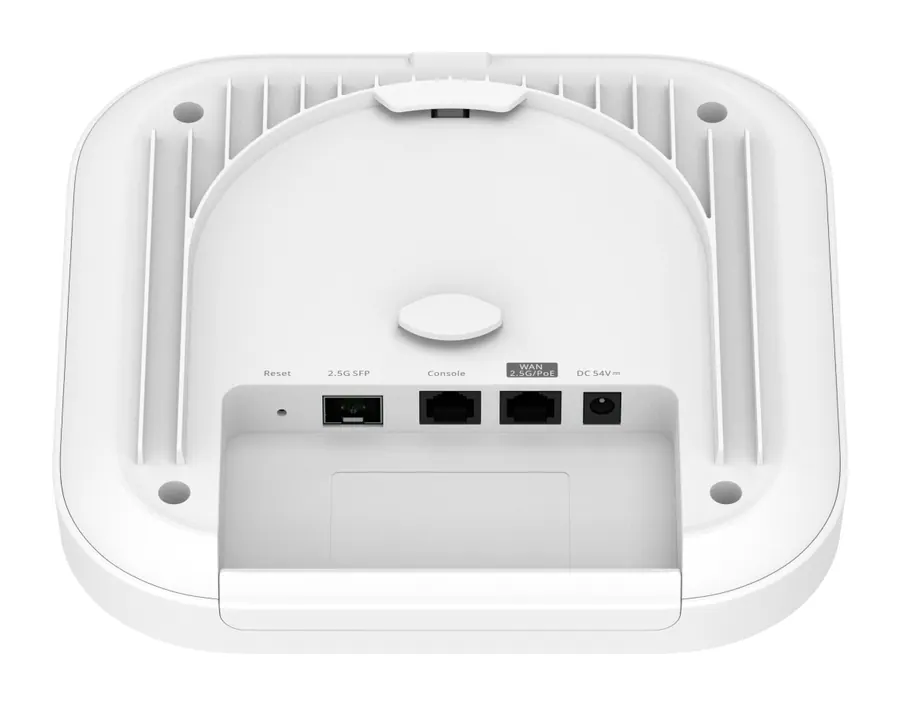

| Ports | 1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at-compliant PoE input; 1 x 2.5GE SFP port, compatible with 1GE optical transceiver |
| Bluetooth | Bluetooth 5.3; Remote maintenance through a Bluetooth serial port |
| Max associated clients | 1024 |
| DC power supply | DC power adapter: 54 V, 0.6 A; DC connector dimensions: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.) |
| PoE power supply | IEEE 802.3af (PoE); IEEE 802.3at (PoE+) |
| Max power consumption | 18 W |
| Operating temperature | –10°C to +50°C (14°F to 122°F) |
| Dimensions (W x D x H) | 200 mm x 200 mm x 38.2 mm (7.87 in. x 7.87 in. x 1.50 in., without the mounting bracket) |
| Mounting | Ceiling-mount, wall-mount, and junction box-mount |
| Model | RG-CAP72-I |
Need installation or a bulk quote? Talk to our team.
