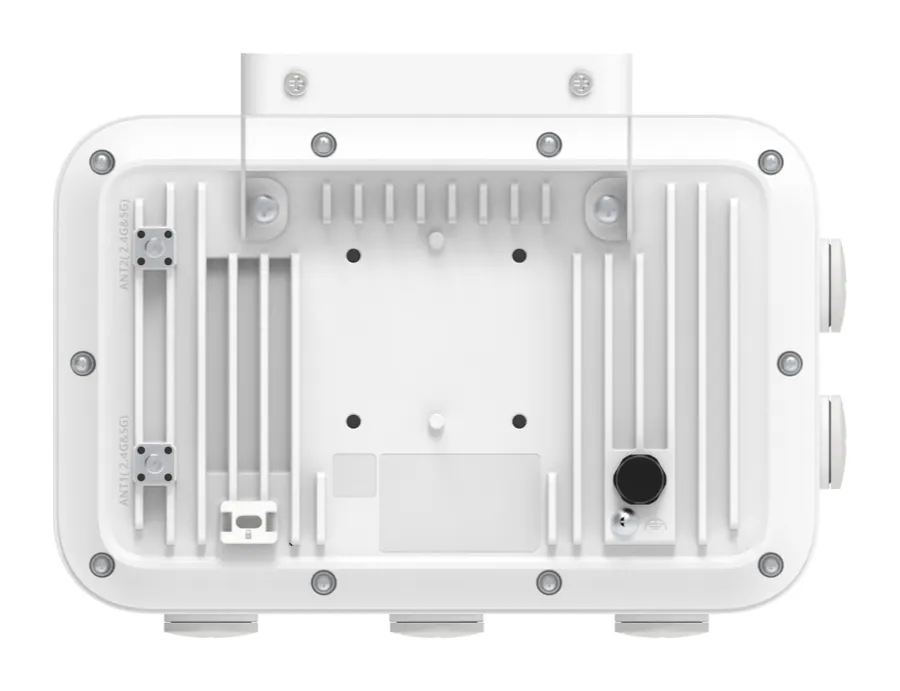

RG-CAP62-O Wi-Fi 6 AX3000 Outdoor Access Point
Ruijie
RG-CAP62-O Wi-Fi 6 AX3000 Outdoor Access Point
Model: RG-CAP62-O
Pricing for this product is provided on request.
Request a quoteThe RG-CAP62-O is a Wi-Fi 6 AX3000 outdoor access point. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: AX3000 Wi-Fi 6 speed for hotel gardens, campus walkways, and small factory yards; Dual 2.5G ports (RJ45 + SFP) with fiber support for long-distance deployment.
Specifications
| Wi-Fi standard | IEEE 802.11ax (Wi-Fi 6), compatible with IEEE 802.11a/b/g/n/ac |
| Radio design | Dual-radio; 4 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO |
| Max data rate | Combined peak data rate: 2976 Mbps; Radio 1: 2.4 GHz, 574 Mbps; Radio 2: 5 GHz, 2402 Mbps |
| Antenna | 2.4 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas; 5 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas; Bluetooth: 1 x built-in omnidirectional antenna |

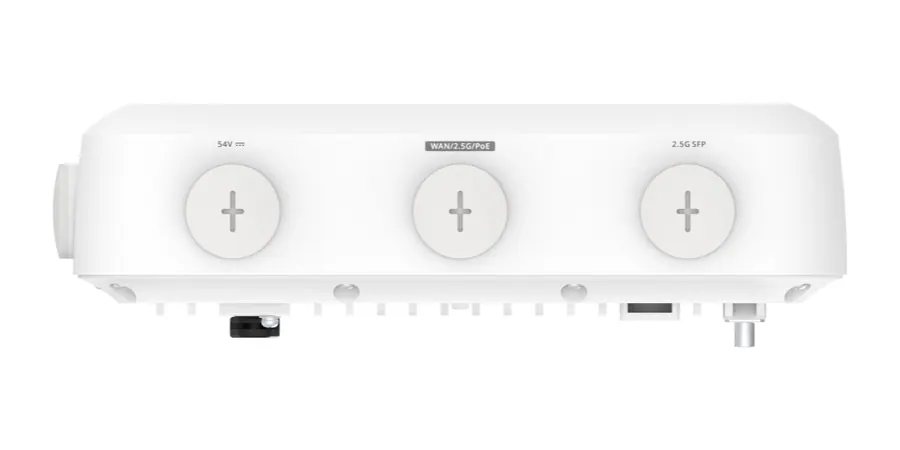

| Ports | 1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at-compliant PoE input; 1 x 2.5GE SFP port, compatible with 1GE optical transceiver |
| Bluetooth | Bluetooth 5.3; Remote maintenance through a Bluetooth serial port |
| Max associated clients | 1024 |
| DC power supply | DC power adapter: 54 V, 0.6 A; DC connector dimensions: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.) |
| PoE power supply | IEEE 802.3af (PoE); IEEE 802.3at (PoE+) |
| Max power consumption | 18 W |
| Operating temperature | –40°C to +65°C (–40°F to +149°F) |
| Dimensions (W x D x H) | 248 mm x 78 mm x 163 mm (9.76 in. x 3.07 in. x 6.42 in., without the mounting bracket) |

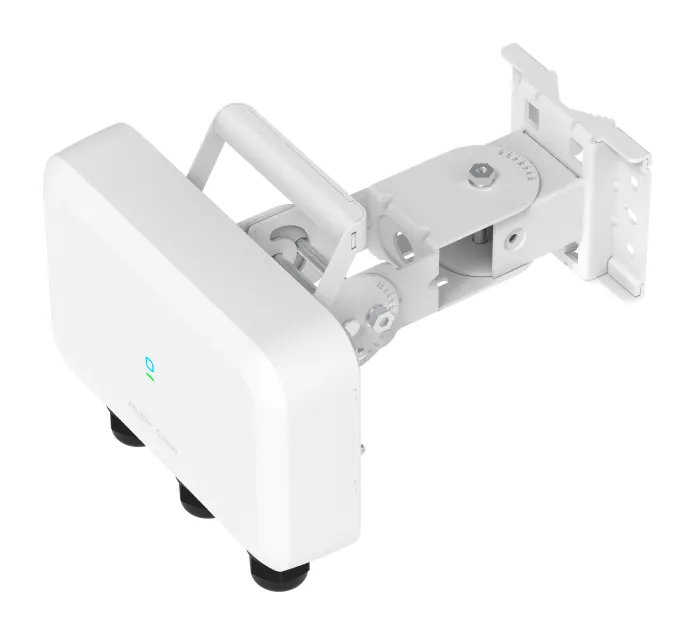

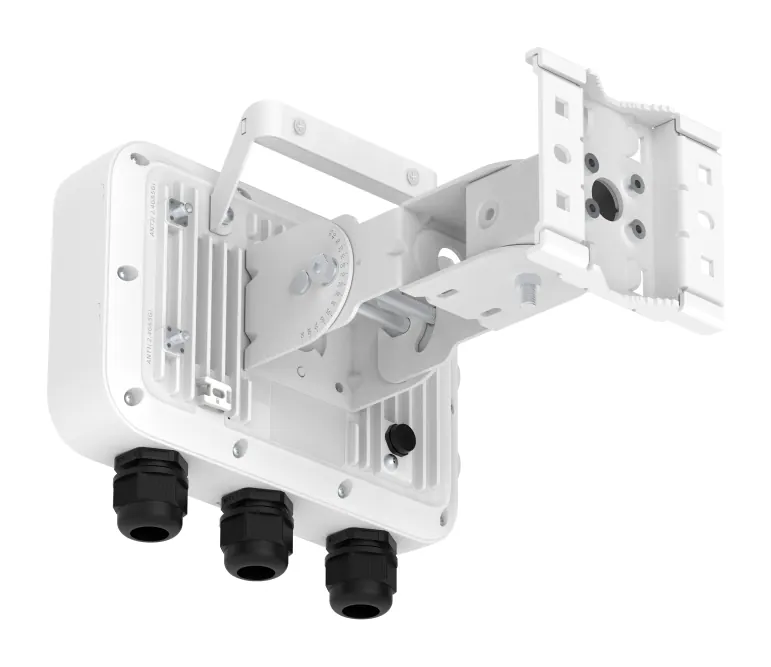

| Mounting | Wall-mount and pole-mount |
| Model | RG-CAP62-O |
