RG-AP9861-R Wi-Fi 7 24.436 Gbps Indoor Access Point, 18 Spatial Streams, Built-in AI Radio
Ruijie
RG-AP9861-R Wi-Fi 7 24.436 Gbps Indoor Access Point, 18 Spatial Streams, Built-in AI Radio
Model: RG-AP9861-R
Pricing for this product is provided on request.
Request a quoteThe RG-AP9861-R is a Wi-Fi 7 24.436 Gbps indoor access point with 18 spatial streams and built-in AI radio. Applicable to Ruijie Simplified Optical Ethernet Solution and ideal for high-density indoor scenarios in the sectors covering higher education, government, general education, finance, and business. Key features: Enterprise-class Wi-Fi 7 revolution, delivering a data rate of up to 24.436 Gbps.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be |
| Radio design | Five-radio: 2.4 GHz (4x4), 5 GHz 1 (4x4), 5 GHz 2 (4x4), 6 GHz (4x4), 2.4 GHz/5 GHz (2x2), up to 18 spatial streams |
| Max data rate | 24.436 Gbps |
| Antenna | Built-in omnidirectional smart antennas |

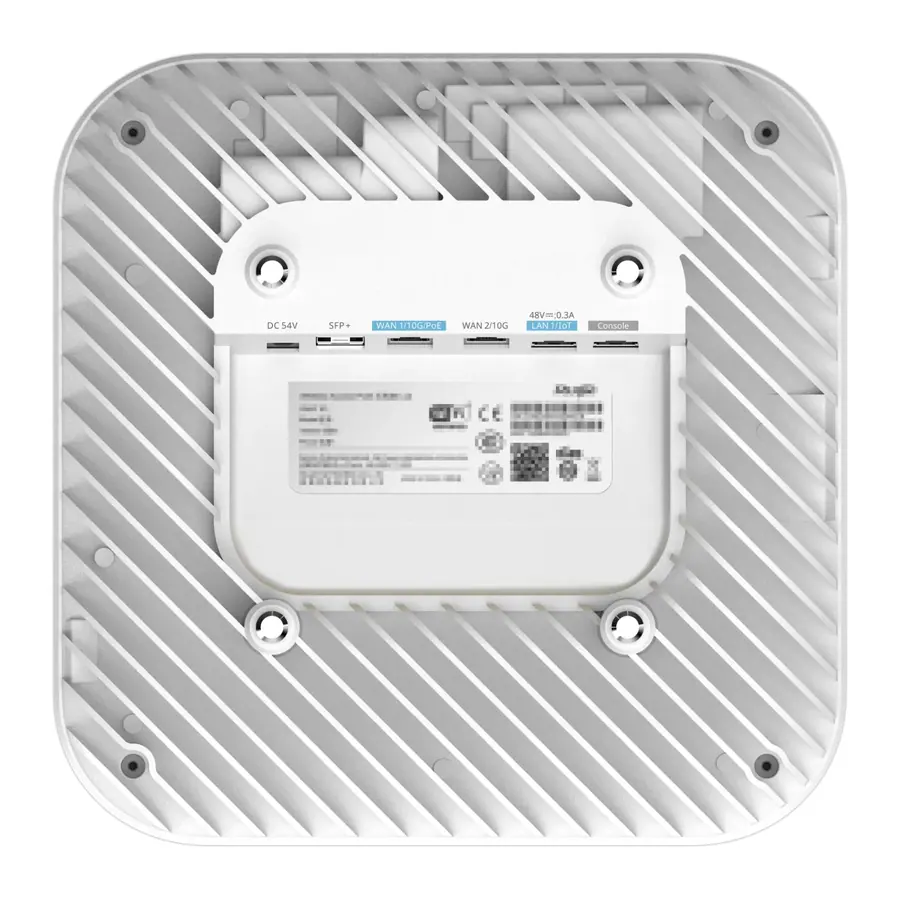

| Ports | 1 x 100/1000/2.5G/5G/10GBASE-T port; 1 x 10GE SFP+/RJ45 combo port; 1 x 10/100/1000BASE-T |
| Bluetooth | Bluetooth 5.3 |
| Max associated clients | 2,048 (512 STAs per radio) |
| Power supply | 54 V DC/1.25 A power input over DC connector; PoE+/PoE++ input, in compliance with IEEE 802.3at/bt |
| Max power consumption | 60 W |
| Operating temperature | –10°C to +50°C (14°F to 122°F) |
| Dimensions (W x D x H) | 245 mm x 245 mm x 67 mm (9.65 in. x 9.65 in. x 2.64 in.) |
| Mounting | Wall/Ceiling-mount |
| Model | RG-AP9861-R |
