RG-AP9220(V2) Wi-Fi 7 Dual-Radio 3.570 Gbps Indoor Access Point
Ruijie
RG-AP9220(V2) Wi-Fi 7 Dual-Radio 3.570 Gbps Indoor Access Point
Model: RG-AP9220(V2)
Pricing for this product is provided on request.
Request a quoteThe RG-AP9220(V2) is a Wi-Fi 7 dual-radio 3.570 Gbps indoor access point. Suitable for indoor scenarios across higher education, government, K12 education, finance, and commercial sectors. Key features: 5GE SFP port and 2.5G Ethernet port for flexible networking; Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be |
| Radio design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2), up to 4 spatial streams |
| Max data rate | 3.570 Gbps |
| Antenna | Built-in omnidirectional smart antennas |

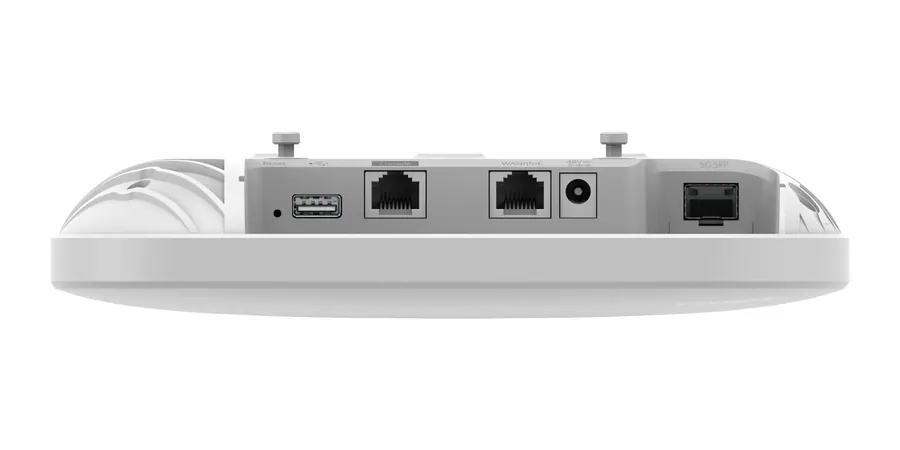

| Ports | 1 x 100/1000/2.5GBASE-T port; 1 x 5GE SFP+ port |
| Bluetooth | Bluetooth 5.3 |
| Max associated clients | 1,024 (512 STAs per radio) |
| Power supply | 48 V DC/0.54 A power input over DC connector; PoE/PoE+ input, in compliance with IEEE 802.3af/at |
| Max power consumption | 18.5 W |
| Operating temperature | –10°C to +50°C (14°F to 122°F) |
| Dimensions (W x H x D) | 200 mm x 200 mm x 40 mm (7.87 in. x 7.87 in. x 1.57 in.) |

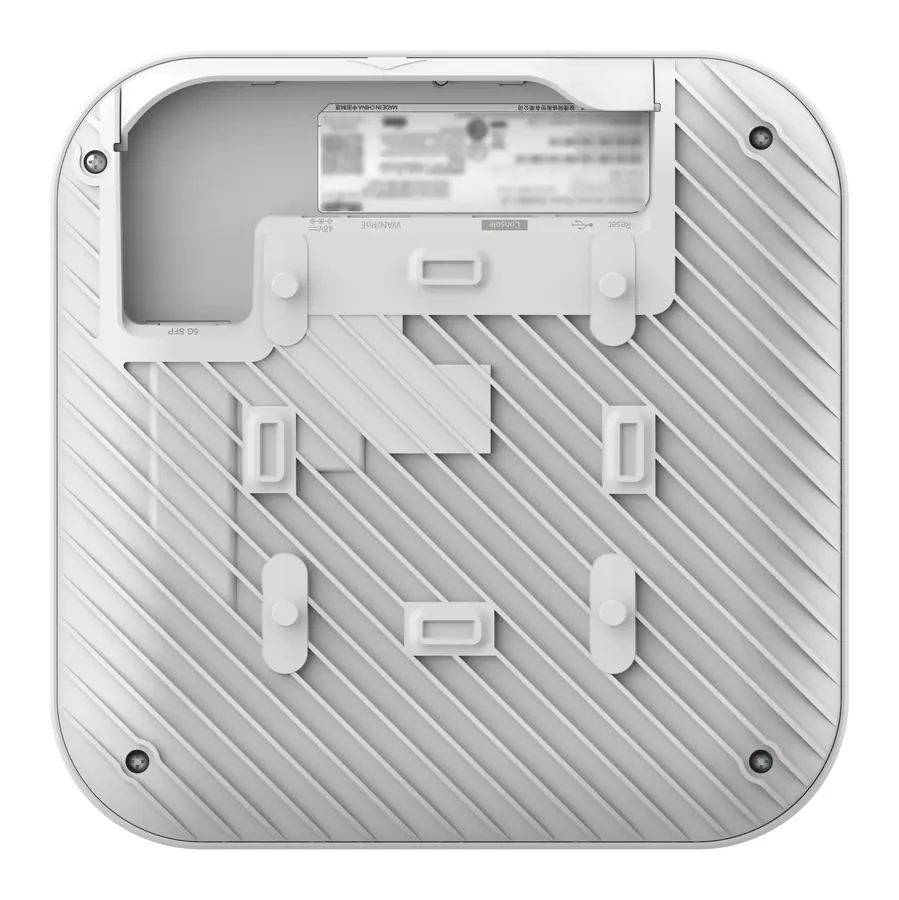

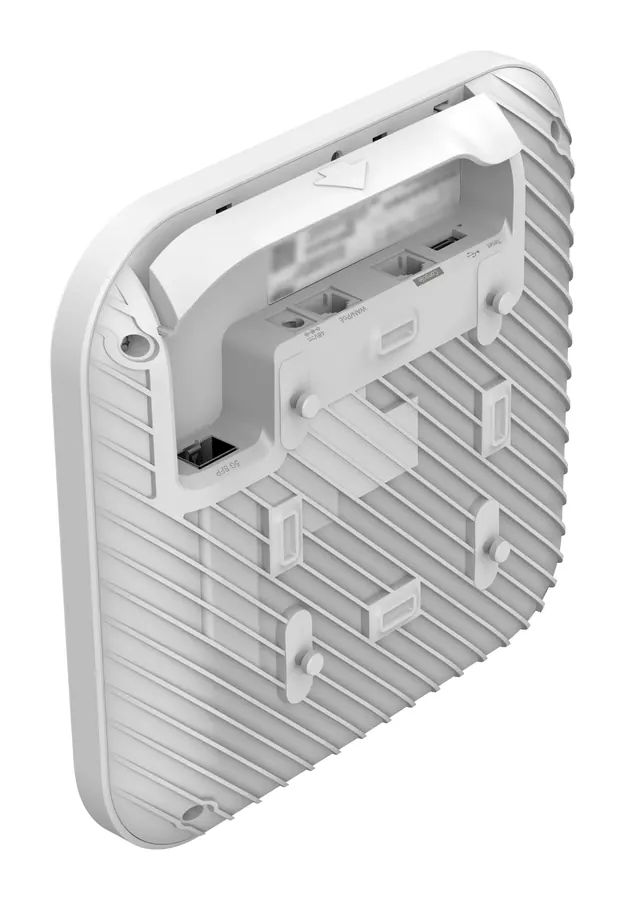

| Mounting | Ceiling/Wall-mount |
| Model | RG-AP9220(V2) |
