RG-AP7176-R(V2) Wi-Fi 7 Quad-Radio 17.982 Gbps High-Density Indoor AP, Intelligent 5 GHz & 6 GHz Band Switching
Ruijie
RG-AP7176-R(V2) Wi-Fi 7 Quad-Radio 17.982 Gbps High-Density Indoor AP, Intelligent 5 GHz & 6 GHz Band Switching
Model: RG-AP7176-R(V2)
Pricing for this product is provided on request.
Request a quoteThe RG-AP7176-R(V2) is a Wi-Fi 7 quad-radio 17.982 Gbps high-density indoor AP with intelligent 5 GHz & 6 GHz band switching. Key features: 10GE combo port for flexible deployment; Enterprise-class Wi-Fi 7 delivering a data rate of up to 17.982 Gbps.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be |
| Radio design | Quad-radio: 2.4 GHz (2x2), 5 GHz (4x4), 5 GHz/6 GHz (4x4), 2.4 GHz/5 GHz (2x2), up to 12 spatial streams |
| Max data rate | 17.982 Gbps |
| Antenna | Built-in omnidirectional smart antenna |

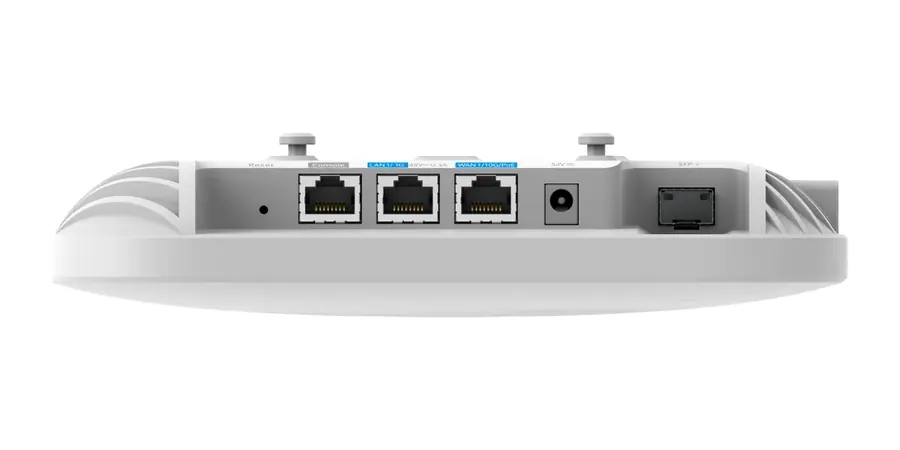

| Ports | 1 x 100/1000/2.5G/5G/10GBASE-T port; 1 x 10GE SFP+/RJ45 combo port; 1 x 10/100/1000BASE-T port |
| Bluetooth | Bluetooth 5.3 |
| Max associated clients | 1280 |
| Power supply | 54 V DC/1.25 A power input over DC connector; PoE/PoE+/PoE++ input, in compliance with IEEE 802.3af/at/bt |
| Max power consumption | 55 W |
| Operating temperature | –10°C to +50°C (14°F to 122°F) |
| Dimensions (W x D x H) | 220 mm x 220 mm x 42.7 mm (8.66 in. x 8.66 in. x 1.68 in.) |
| Mounting | Ceiling or wall |
| Model | RG-AP7176-R(V2) |
