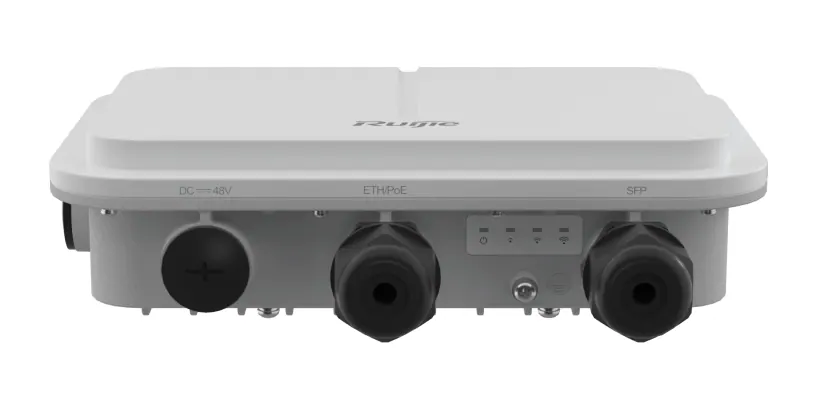

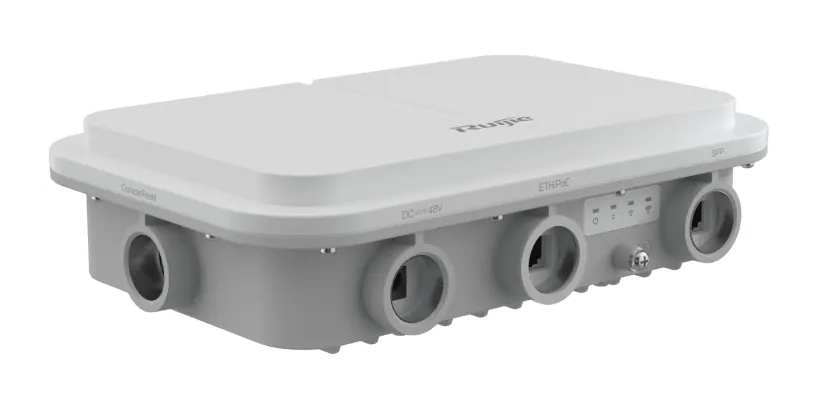

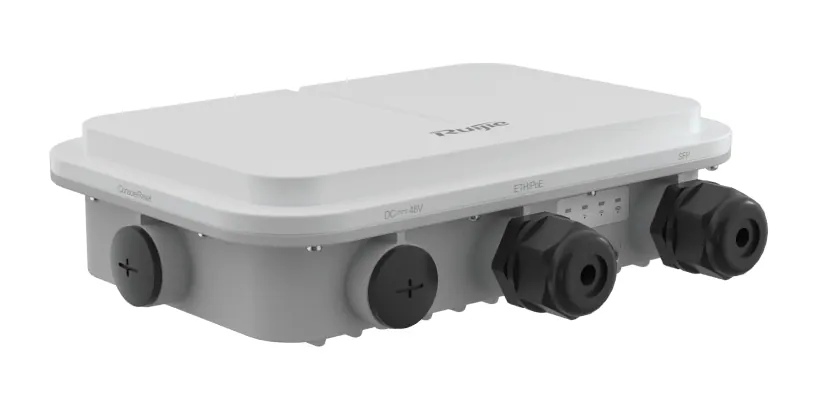

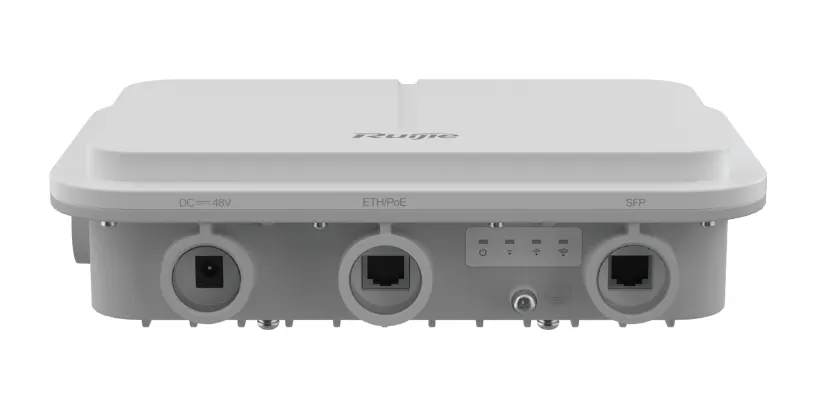

RG-AP680-L Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Ruijie
RG-AP680-L Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Model: RG-AP680-L
Pricing for this product is provided on request.
Request a quoteThe RG-AP680-L is a Wi-Fi 6 dual-radio 2.976 Gbps outdoor AP. Suited to outdoor scenarios in general education, energy, business, government, and healthcare sectors. Key features: Industrial-grade product design, IP68 rating, Operating temperature: -40°C to +65°C; High-power omnidirectional antennas with 360° coverage to every corner.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2); up to 4 spatial streams |
| Max data rate | Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps |
| Antenna | Built-in omnidirectional antennas |
| Ports | 1 x 10/100/1000BASE-T port; 1 x 1GE SFP port |
| Bluetooth | Bluetooth 5.0 |
| Power supply | 48 V DC/0.35 A power supply; PoE/PoE+ (802.3af/at) |
| Max power consumption | 12.95 W |
| External power supply | No |
| Operating temperature | –40°C to +65°C (–40°F to +149°F) |
| IP rating | IP68 |
| Dimensions (W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
| Mounting | Ceiling/Pole mounting |
| Warranty | 3 Years |
| Model | RG-AP680-L |
Need installation or a bulk quote? Talk to our team.
