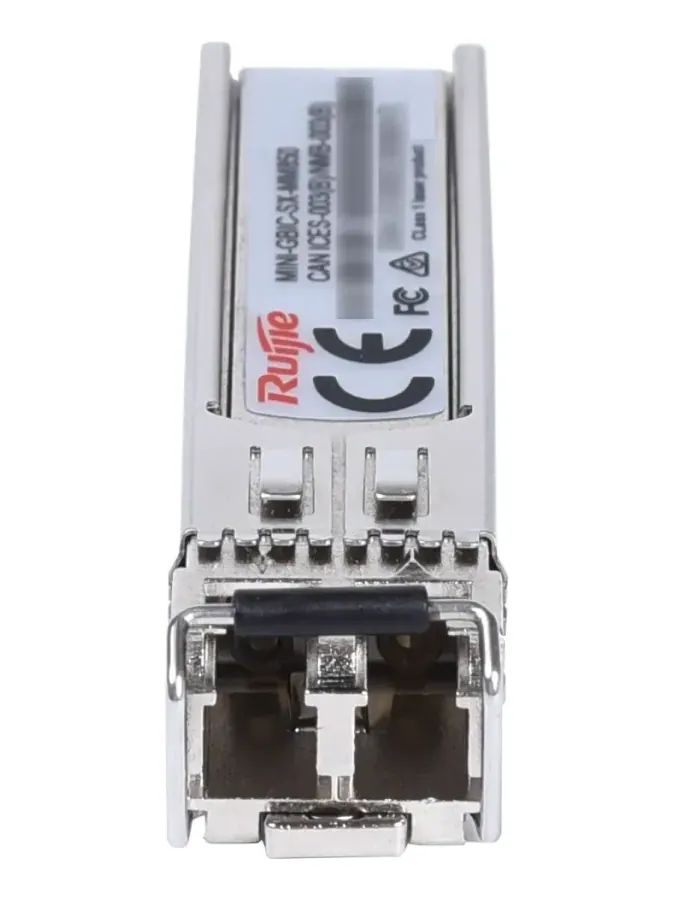

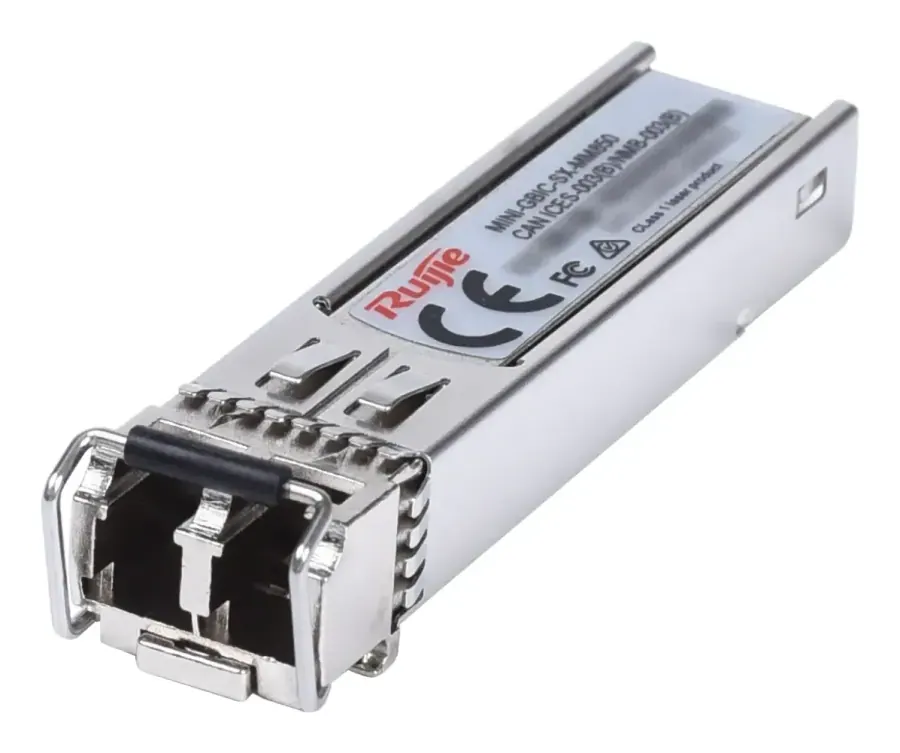

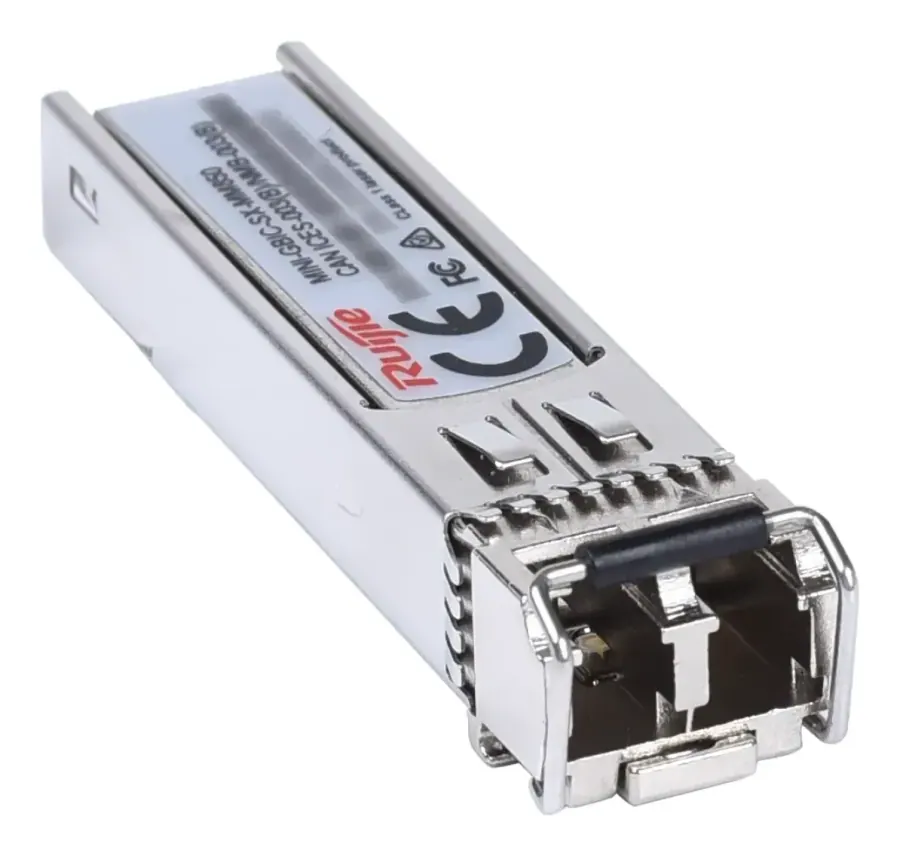

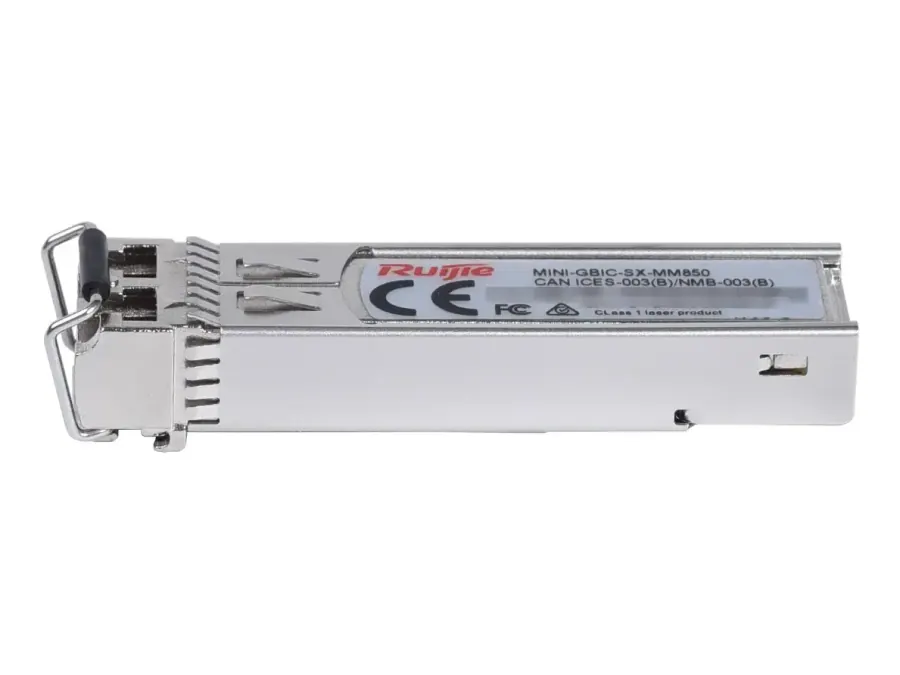

MINI-GBIC-SX-MM850 1000BASE-SX SFP 850-nm 550-m DDM Duplex LC MMF Optical Transceiver Module
Model: MINI-GBIC-SX-MM850
Pricing for this product is provided on request.
Request a quote1000BASE-SX SFP 850-nm 550-m DDM Duplex LC MMF Optical Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs). MINI-GBIC-SX-MM850 Module The MINI-GBIC-SX-MM850 is aligned to IEEE 1000BASE-SR optical specifications and supports a link length of up to 550 meters over a multimode fiber (MMF) with an LC connector.
Specifications
| Data rate | 1.25 Gbps |
| Form factor | SFP |
| Connector type | Duplex LC |
| Cable type | MMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | VCSEL |
| Receiver type | PIN |
| Reach | 550 m (1,804.46 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength (nm) | 850 |
| Max. transmit power (AVG) | 0 dBm |
| Min. transmit power (AVG) | –9.5 dBm |
| Min. extinction ratio | ≥ 9 dB |
| Receive sensitivity (OMA) | < –17 dBm |
| Overload optical power (AVG) | 0 dBm |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | MINI-GBIC-SX-MM850 |
