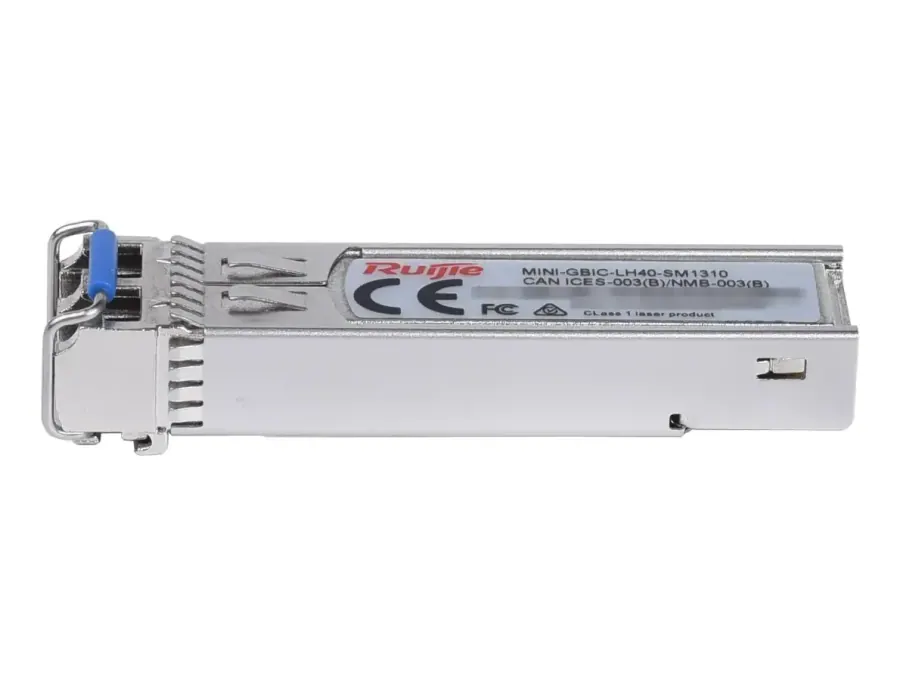

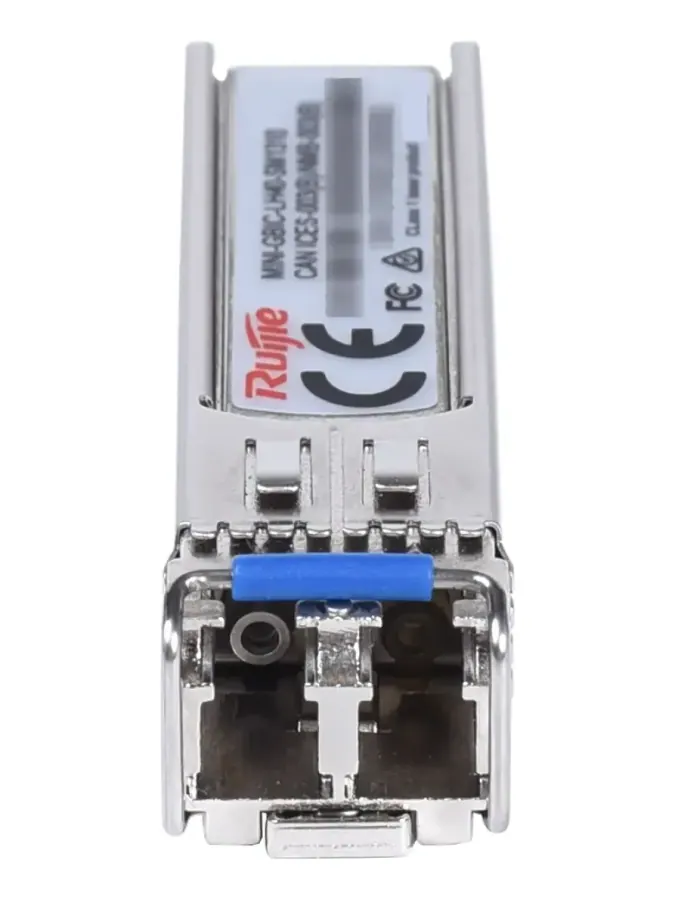

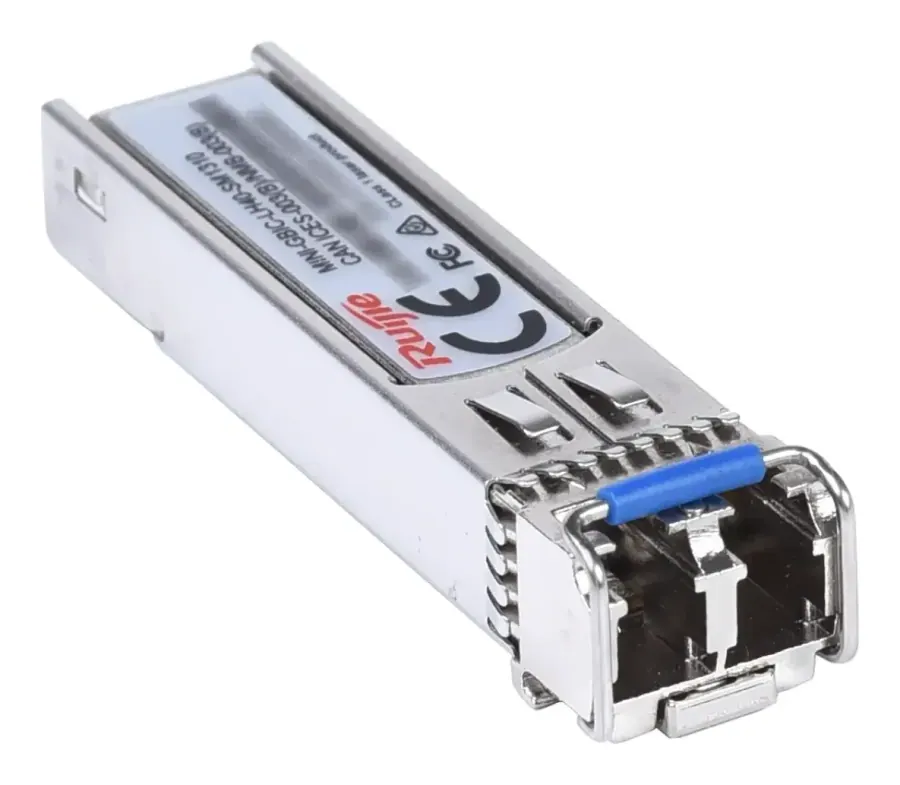

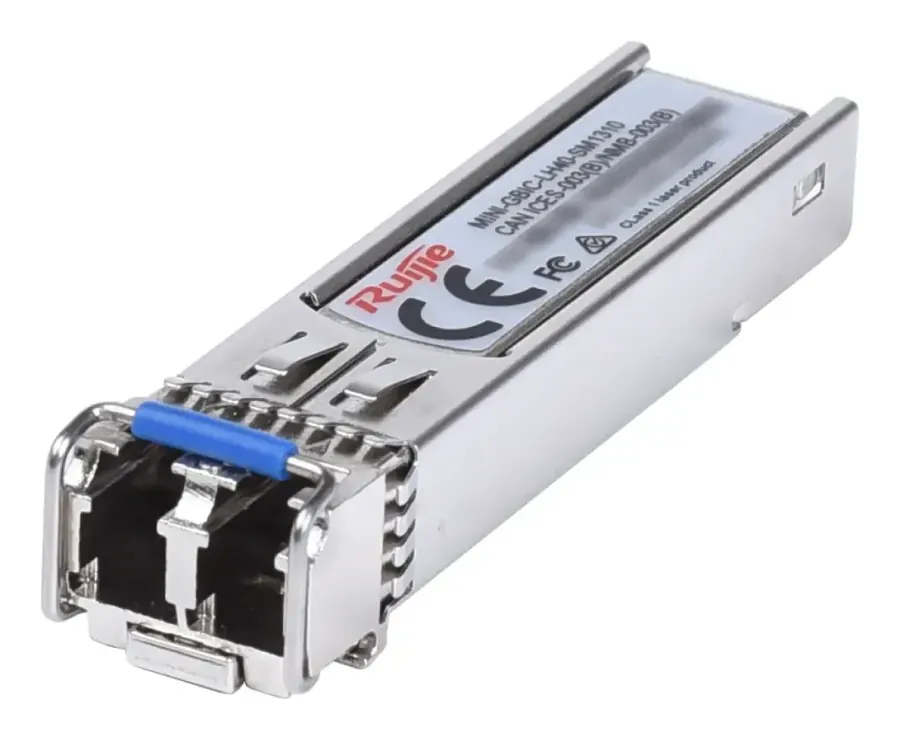

MINI-GBIC-LH40-SM1310 1000BASE-SX SFP 1310-nm 40-km DDM Duplex LC SMF Optical Transceiver Module
Model: MINI-GBIC-LH40-SM1310
Pricing for this product is provided on request.
Request a quote1000BASE-SX SFP 1310-nm 40-km DDM Duplex LC SMF Optical Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs). MINI-GBIC-LH40-SM1310 Module The MINI-GBIC-LH40-SM1310 is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with an LC connector.
Specifications
| Data rate | 1.25 Gbps |
| Form factor | SFP |
| Connector type | Duplex LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 40 km (131,233.60 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength (nm) | 1310 |
| Max. transmit power (AVG) | 0 dBm |
| Min. transmit power (AVG) | –5 dBm |
| Min. extinction ratio | ≥ 9 dB |
| Receive sensitivity (OMA) | < –23 dBm |
| Overload optical power (AVG) | –3 dBm |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | MINI-GBIC-LH40-SM1310 |
