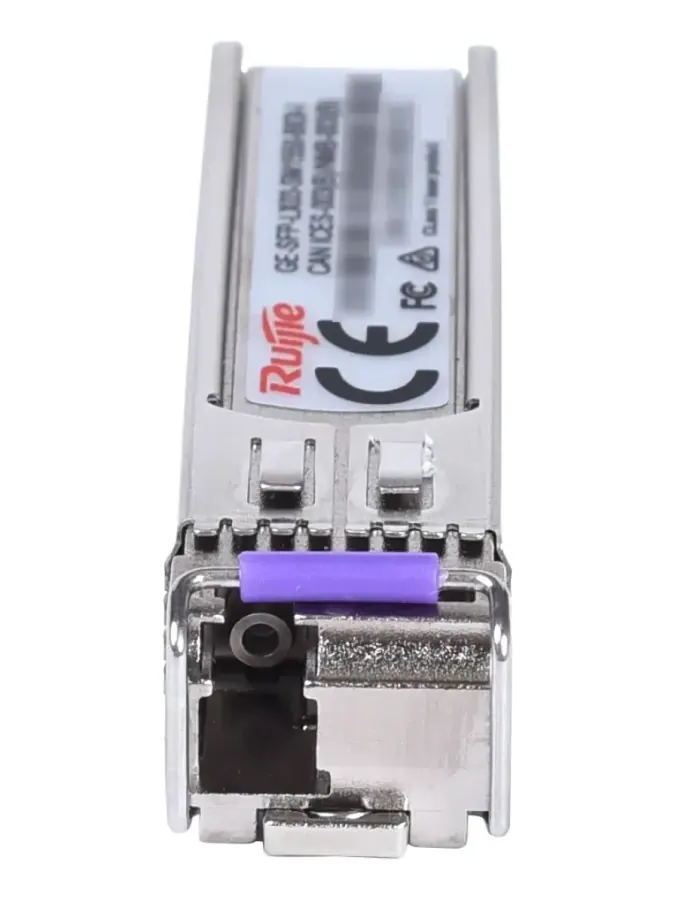

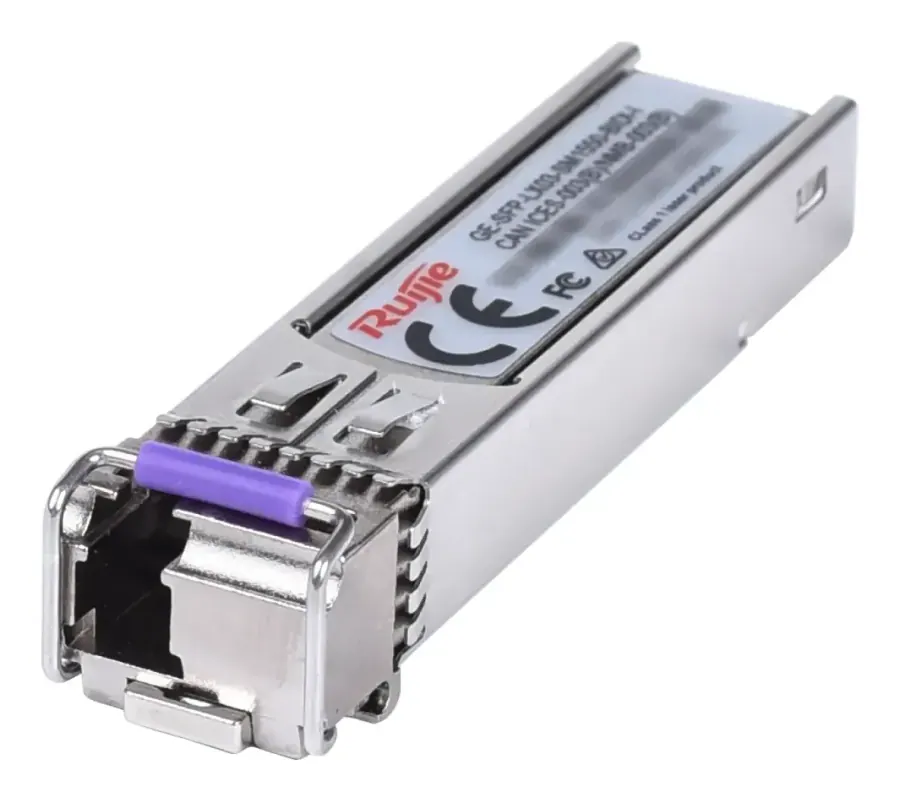

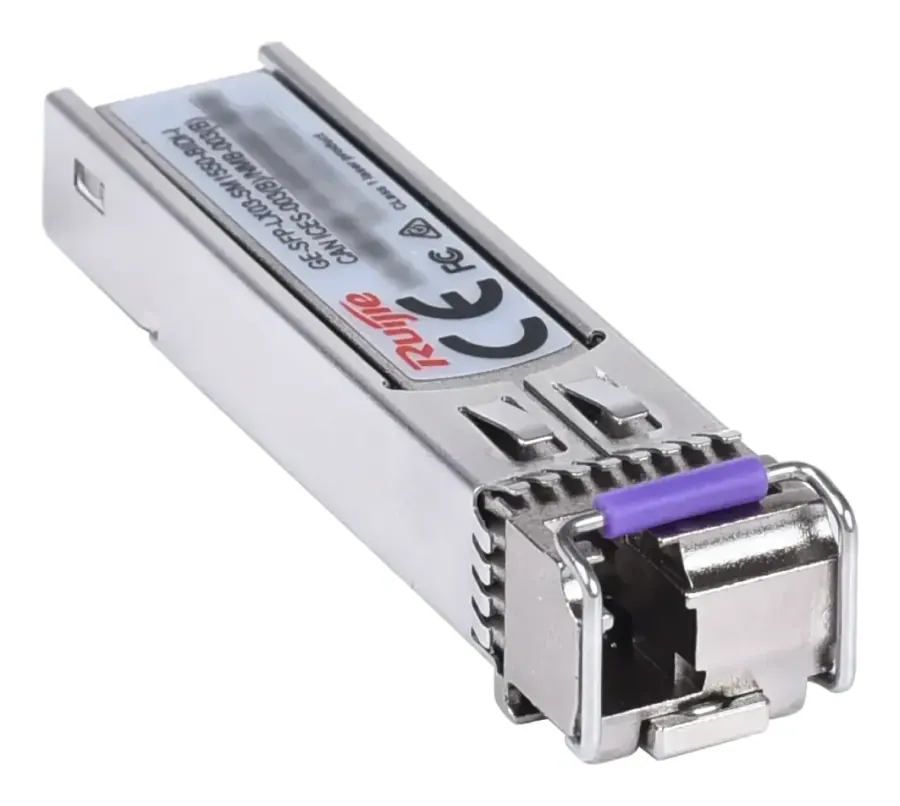

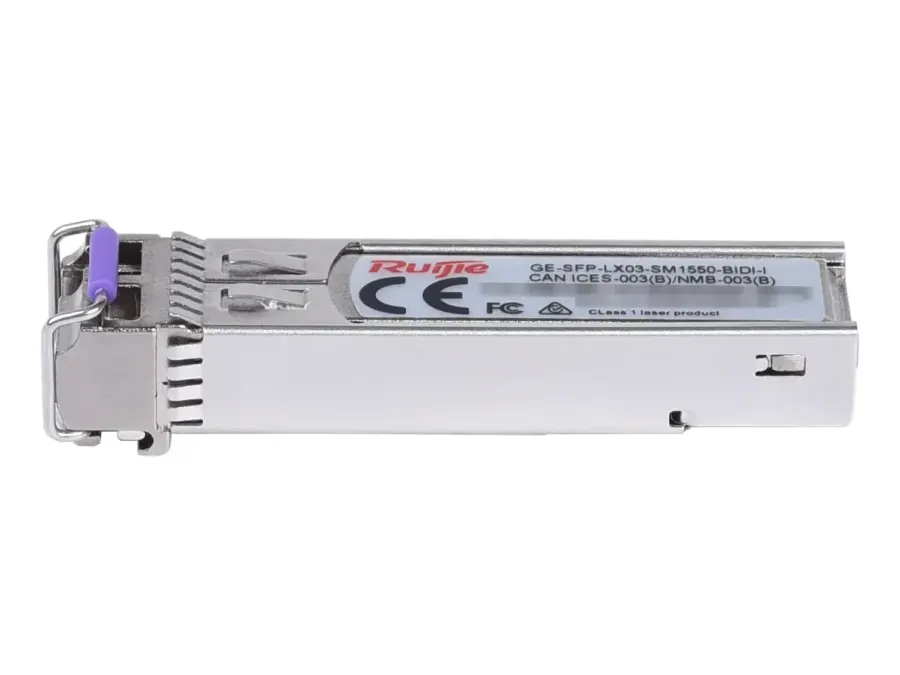

GE-SFP-LX03-SM1550-BIDI-I 1000BASE-LX SFP 1550nm-TX/1310nm-RX 3-km DDM Simplex LC SMF Transceiver Module
Model: GE-SFP-LX03-SM1550-BIDI-I
Pricing for this product is provided on request.
Request a quote1000BASE-LX SFP 1550nm-TX/1310nm-RX 3-km DDM Simplex LC SMF Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs). GE-SFP-LX03-SM1550-BIDI-I Module The GE-SFP-LX03-SM1550-BIDI-I is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 3 kilometers over an SMF with a BIDI LC connector.
Specifications
| Data rate | 1.25 Gbps |
| Form factor | SFP |
| Connector type | BIDI LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 3 km (9,842.52 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength | 1550 nm TX; 1310 nm RX |
| Max. transmit power (AVG) | –3 dBm |
| Min. transmit power (AVG) | –9 dBm |
| Min. extinction ratio | ≥ 9 dB |
| Receive sensitivity (OMA) | < –22 dBm |
| Overload optical power (AVG) | –3 dBm |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 5% RH to 95% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 5% RH to 95% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | GE-SFP-LX03-SM1550-BIDI-I |
