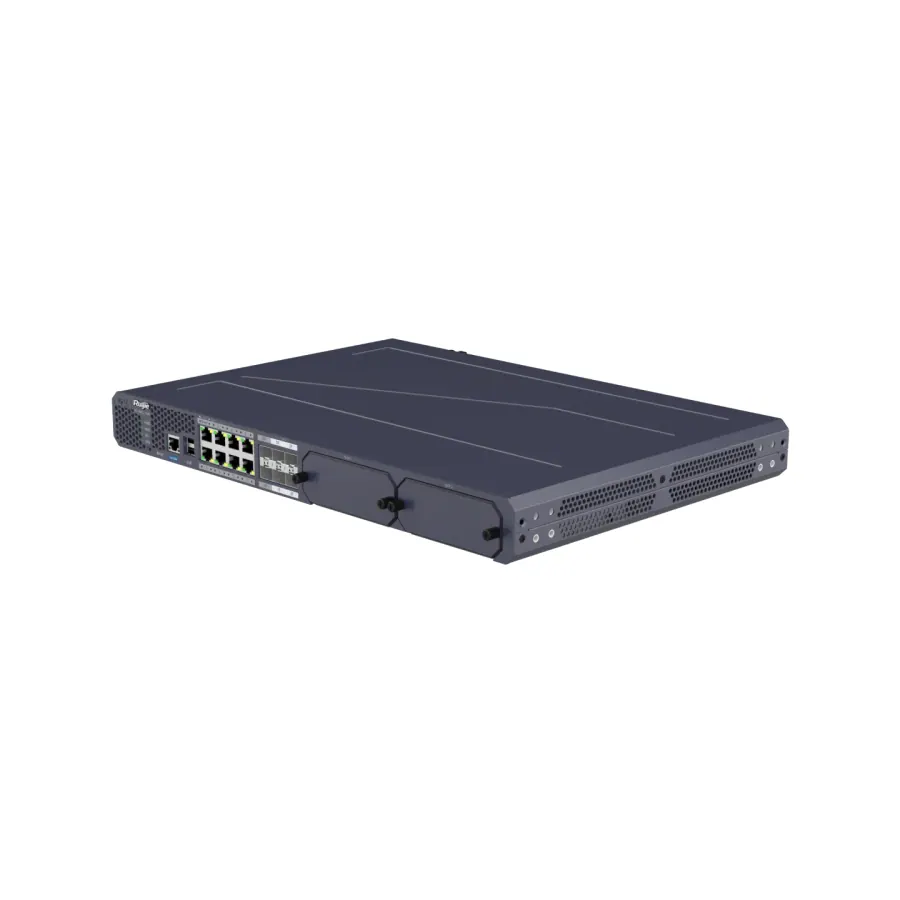

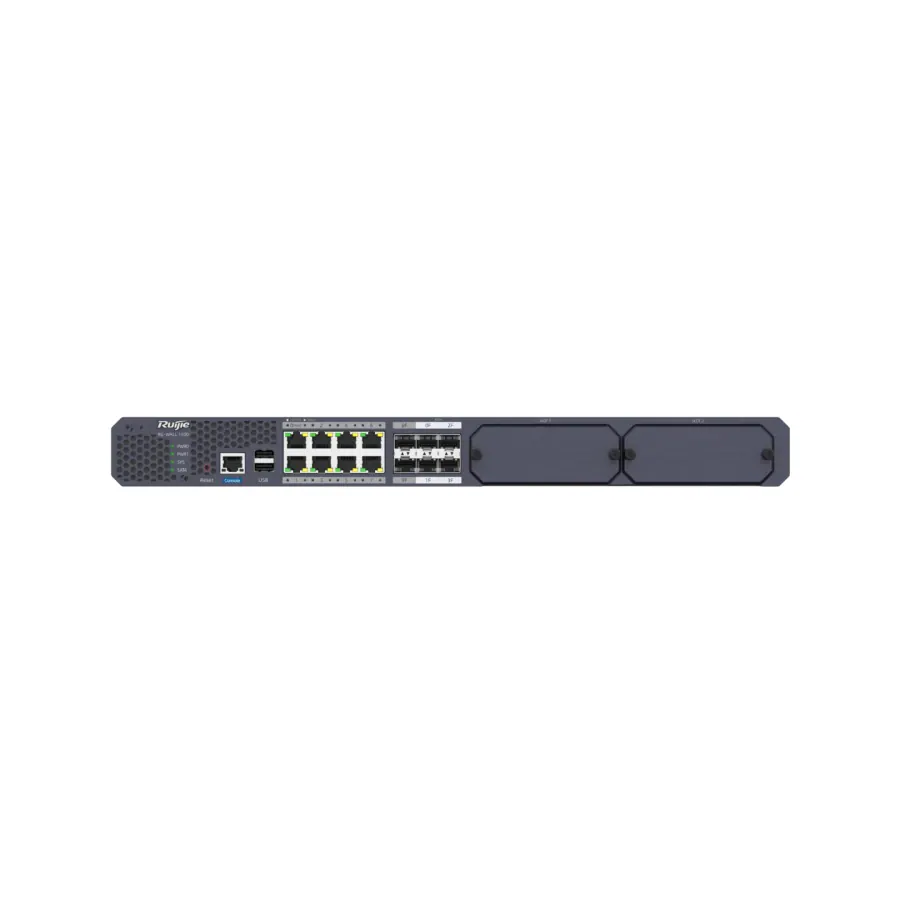

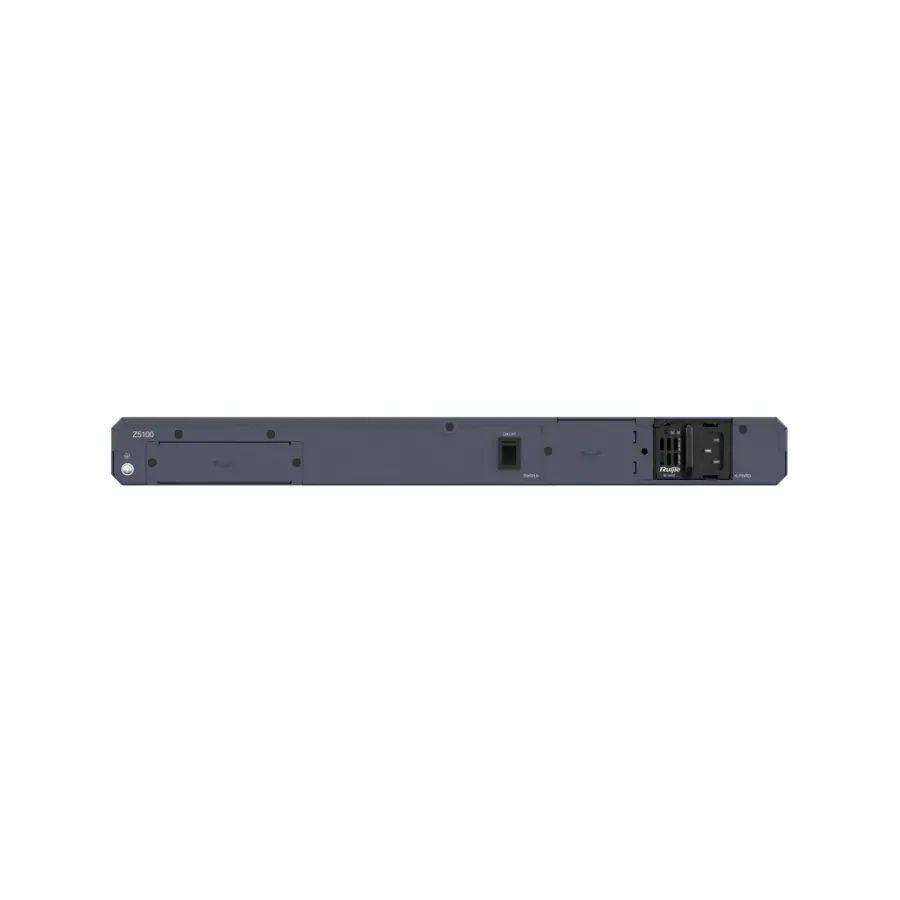

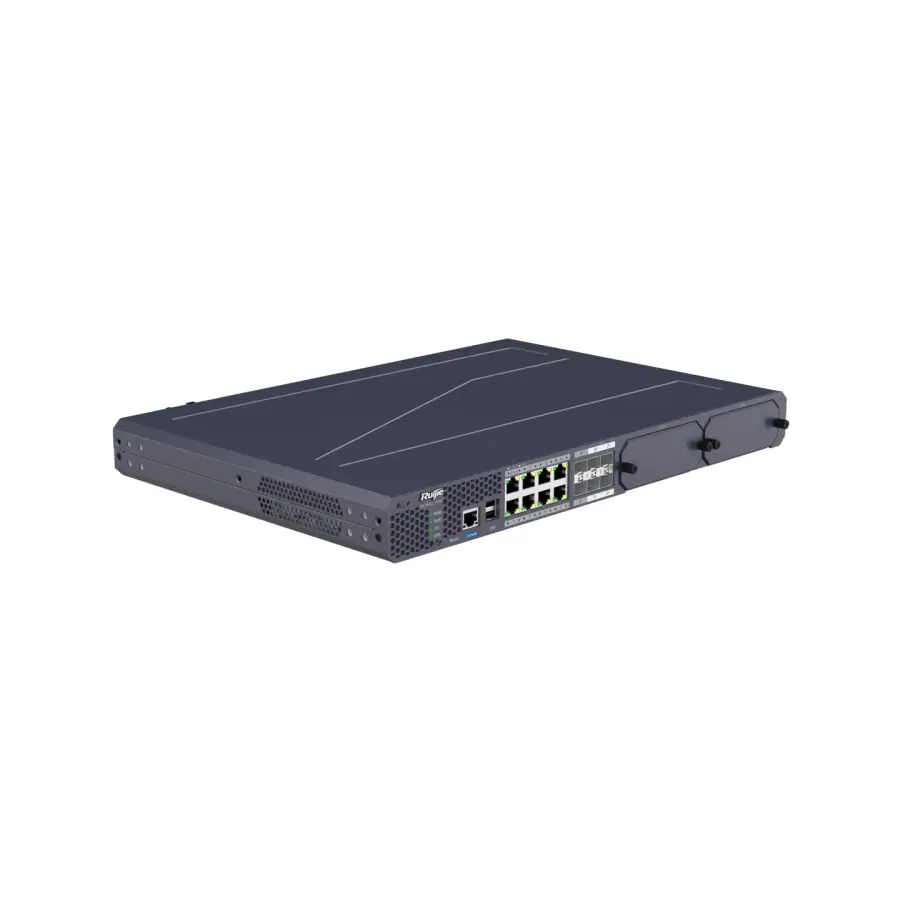

RG-WALL 1600-Z5100-S Next-Generation Z Series Firewall
Ruijie
RG-WALL 1600-Z5100-S Next-Generation Z Series Firewall
Model: RG-WALL 1600-Z5100-S
$3,000
≈ UGX 11,400,000 · pay with MTN MoMo, Airtel Money or card
Next-generation Z Series enterprise-level firewall with flexible, license-based performance scalability, simple configuration and cloud management, fit for network egresses of schools, SMBs, hospitals, governments and data centers. Includes a five-in-one firewall license (IPS, antivirus, threat intelligence, URL filtering and application control) and a free SSL VPN for up to 1,000 users.
Specifications
| Firewall throughput of IPv4 packets (1518-byte UDP packets) | 15 Gbps |
| Firewall throughput (packets per second) | 2.3 Mpps |
| Concurrent sessions (TCP) | 1000000 |
| New sessions/second (TCP) | 134000 |
| Firewall policies | 4000 |
| SSL VPN throughput (1392-byte) | 3 Gbps |
| Concurrent SSL VPN users (recommended maximum, tunnel mode) | 1000 |
| Application control throughput (HTTP 64K) | 10 Gbps |
| IPsec VPN throughput (512-byte) | 4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 1000 |
| Product dimensions (W x D x H) | 440 mm x 300 mm x 43.6 mm (17.32 in. x 11.81 in. x 1.72 in.) |
| Shipping dimensions (W x D x H) | 545 mm x 450 mm x 130 mm (21.46 in. x 17.72 in. x 5.12 in.) |
| Product weight | 4.44 kg (9.79 lbs) |
| Shipping weight | 5.7 kg (12.57 lbs) |
| Form factor | 1 RU rack |
| Fixed service port | 8 x 10/100/1000BASE-T ports; 2 x 1GE SFP ports; 4 x 10GE SFP+ ports |
| Fixed management port | 1 x RJ45 MGMT port (reusing Ge0/0); 1 x RJ45 console port (RS-232) |
| USB port | 2 x USB 2.0 ports |
| Hard disk | No hard disk for factory delivery. A 1 TB SATA hard drive can be added.; To ensure syslog security and system stability, please use Ruijie brand hard drives. Ruijie will not be responsible for any syslog loss or performance degradation resulting from the use of third-party hard drives. |
| Power supply | 2 x pluggable power modules (one power module for factory delivery); Rated input voltage: 100–240 V; 50–60 Hz; Rated input current: 2 A (maximum) |
| Max. Power Consumption | < 60 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 40% RH to 65% RH (non-condensing) |
| Model | RG-WALL 1600-Z5100-S |
Need installation or a bulk quote? Talk to our team.
