RG-WALL 1600-Z3200-S Next-Generation Z Series Firewall
Ruijie
RG-WALL 1600-Z3200-S Next-Generation Z Series Firewall
Model: RG-WALL 1600-Z3200-S
$2,850
≈ UGX 10,830,000 · pay with MTN MoMo, Airtel Money or card

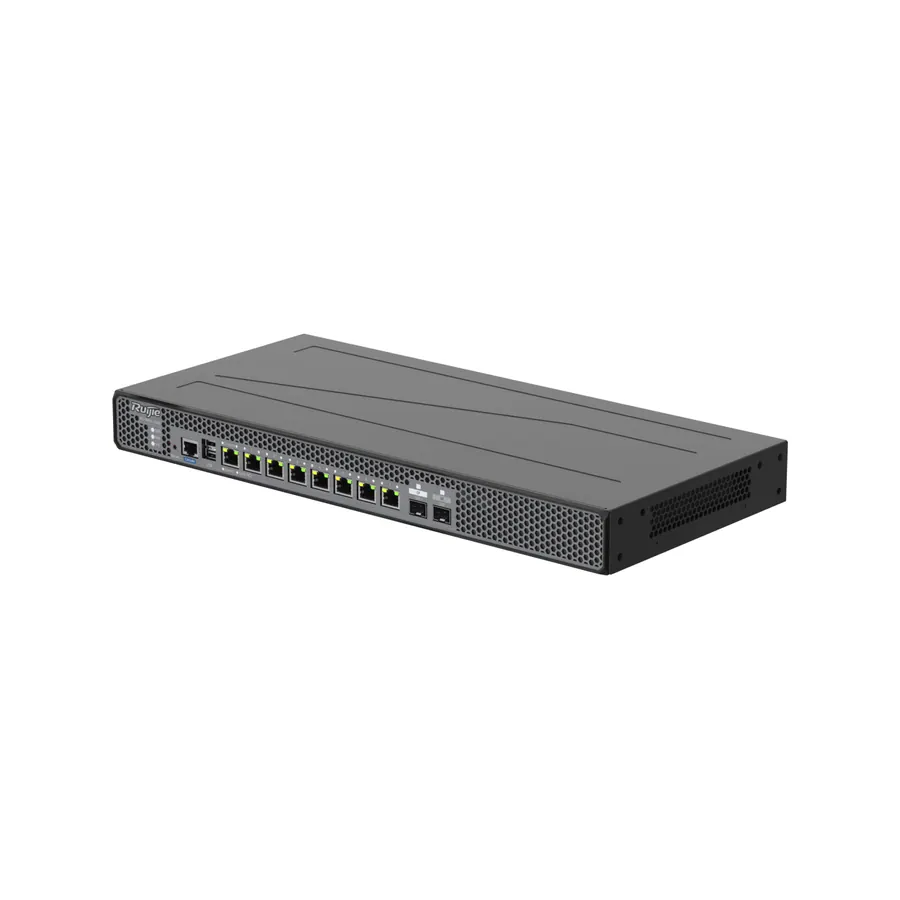

Next-generation Z Series firewall for security defense in hotels, enterprises, schools, factories and hospitals, in a 1 RU chassis with 8 x 10/100/1000BASE-T, 1 x GE SFP and 1 x 10GE SFP+ ports. Features port scan and traffic learning for intelligent policy recommendation, policy simulation before execution, one-click fault locating in the intelligent diagnostic center and cloud management.
Specifications
| Firewall throughput of IPv4 packets (1518-byte UDP packets) | 10 Gbps |
| Firewall throughput (packets per second) | 1.8 Mpps |
| Concurrent sessions (TCP) | 500000 |
| New sessions/second (TCP) | 50000 |
| Firewall policies | 3000 |
| SSL VPN throughput(1392-byte) | 1.7 Gbps |
| Concurrent SSL VPN users (recommended maximum, tunnel mode) | 500 |
| Application control throughput (HTTP 64K) | 3 Gbps |
| IPsec VPN throughput (512-byte) | 2.6 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 1000 |
| Product dimensions (W x D x H) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in.; without rubber pads) |
| Shipping dimensions (W x D x H) | 520 mm x 345 mm x 106 mm (20.47 in. x 13.58 in. x 4.17 in.) |
| Product weight | 2.9 kg (6.39 lbs) |
| Shipping weight | 4.0 kg (8.82 lbs) |
| Form factor | 1 RU rack |

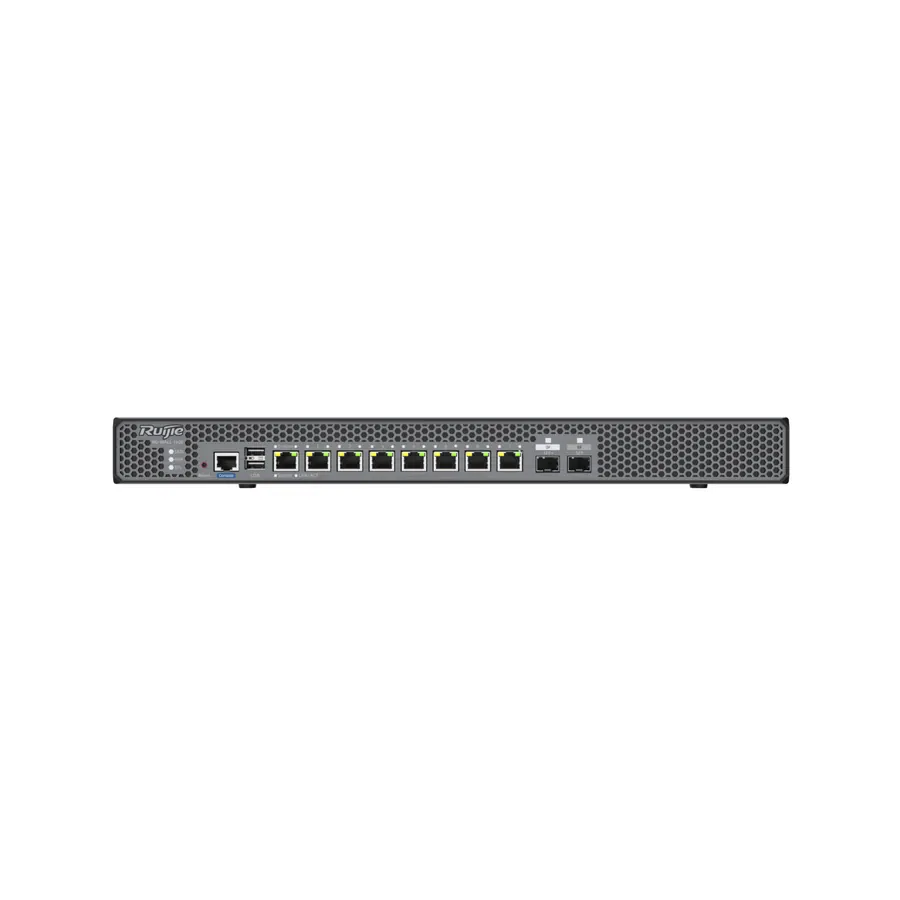

| Fixed service port | 8 x 10/100/1000BASE-T ports; 1 x GE SFP port; 1 x 10GE SFP+ port |
| Fixed management port | 1 x RJ45 MGMT port (reusing Ge0/0); 1 x RJ45 console port (RS-232) |
| USB port | 2 x USB 2.0 ports |
| Hard disk | No hard disk for factory delivery. A 1 TB SATA hard drive can be added. |
| Power supply | Built-in single power module: Rated input voltage: 100–240 V; 50–60 Hz; Rated input current: 0.65 A |
| Max. Power Consumption | < 25 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Model | RG-WALL 1600-Z3200-S |
Need installation or a bulk quote? Talk to our team.
